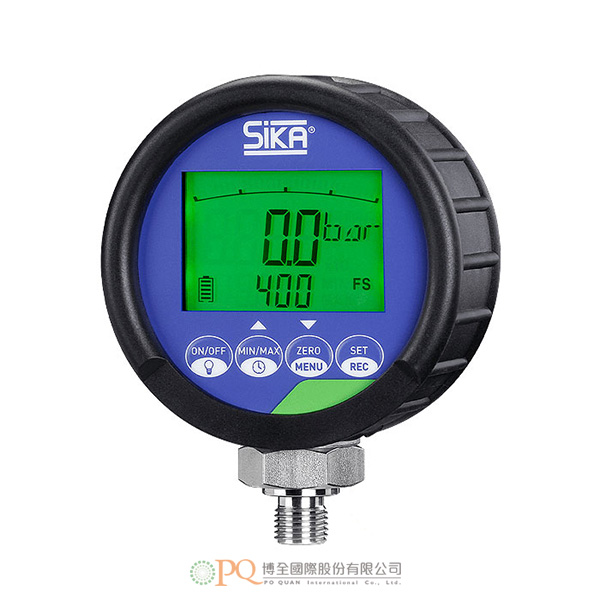

Precision digital pressure gauges / Industry version

型號:Type E2
  • Maintaining high and continuous product quality
  • compliance with industrial requirements and regulations in quality assurance
  • process optimisation
  • increasing productivity
  • avoiding unexpected production downtimes
  • Digital pressure gauges of the TANTUM series are particularly suitable for both stationary and mobile measurement and display of pressures. The use as a pressure reference allows easy checking, setting and calibration of other pressure measuring devices directly on site

    • continuous or temporary checking of different system pressures
    • air-tightness measurement in building envelopes for the detection and elimination of faults as well as for the reduction of structural damage
    • checking the degree of contamination of filter systems in ventilation systems or air conditioning systems
    • recording of pressure drops for the determination of leakage devices in tightness tests
    • measurement of barometric air pressures for the determination of weather conditions
    • reference pressure gauge for calibration tasks
  • Technical data
    Type E2 D2 C2
    Pressure ranges Between -1...1000 bar
    Accuracy (± of full scale value) 0.5 % 0.1 % 0.05 % (0.1 % in vacuum)
    Units
    Pressure bar / mbar, kPa / MPa, PSI, kg/cm², mH2O, inH2O
    Display
    Type Multifunctional LCD, 4 ½ digit, with background lighting
    Functions Bar graph, pressure unit, display filter, MIN/MAX value,
    Overpressure indicaton 110 % of full scale pressure value (FS)
    Measuring system
    Pressure measuring cell ≤ 10 bar piezo resistive
    ≥ 20 bar thin film strain gauge
    Temperature compensation 0...50 °C
    Temperature error 0.005 % of full scale pressure value (FS) / K
    Measuring rate actual value 10 ms
    Measuring rate bar graph 50 ms
    Process connection
    Thread ISO 1179-2 G¼ with NBR gasket, AF27
    Material Stainless steel 1.4404
    Medium temperature -20...80 °C
    Housing connection 270° axially rotatable
    Housing
    Degree of protection DIN EN 60529 IP67
    Dimensions Ø 90 mm, D=45 mm H=120 mm with protection cap
    Materials Cast zinc with protection cap made of TPE
    Ambient conditions 0...50 °C with air humidity ≤85 % r.h.
    Weight 540 g
    Vibration resistance IEC 60068-2-6 5g up to 500 Hz
    Shock resistance IEC 60068-2-29 25g for 11 ms
    Power supply
    Auto-off function Selectable switch-off time 5 minutes
    Battery type 2x 1.5 V AA
    Battery operation 1500 h
    Data logger (optional)
    Max. data sets 27000 per recording series
    Record series 1...10
    Storage rate 0.1…6.4 s - automatically per recording duration
    Max. recording duration 48 h
    Data set information time / actual pressure / MIN/MAX value
    Digital data transmission serial USB 2.0
    Interface Mini USB port
    PC software Detection as USB data storage device, spreadsheet program
    File format .csv
    Adjustment possibility (optional)
    Linearization The factory linearization is changed via OFFSET and INCREASE.
    A special programming adapter is required. Communication between PC/laptop and digital pressure gauge is via TTL level by means of a PC terminal program
