Mono functions process calibrators / For resistance thermometers

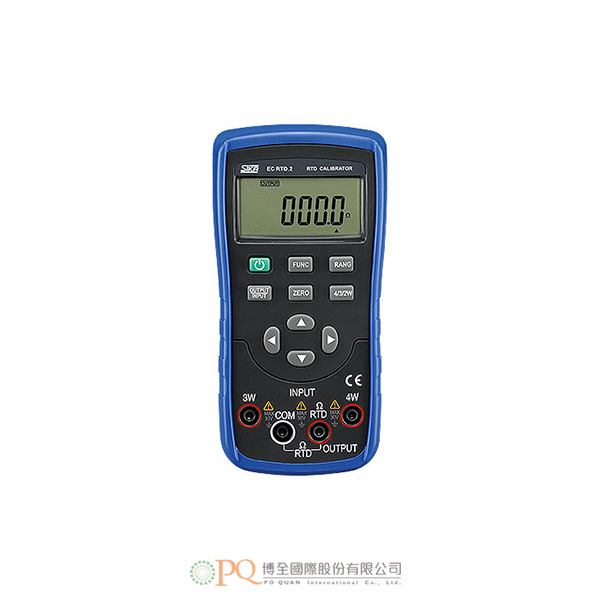

型號:Type EC RTD.2
  • Precise simulation and measurement of RTD signals
  • simple operation and robust casing
  • for mobile on-site calibration
  • SIKA process calibrators have been developed to make your calibration and maintenance tasks easier and more flexible. Different test sequences can be completed in one pass without changing instruments. This saves time. The monofunction process calibrators are the ideal aid when only one type of signal is required.

    The main application areas are

    • in service, maintenance and repair
    • in quality assurance
    • in test labs and in research
    • in measurement and control technology
    • in the process industry
    • in energy supply
    • in machine and apparatus construction

    as well as in many other areas.

    The backlit multifunction display is used for clear and unambiguous display of the input and output values as well as all the settings made.

    In addition to the widespread keyboard-guided operation by means of rubber keys, there is also the convenient menu-guided operation via function keys, navigation cross and numeric keypad. This also allows more extensive functions to be depicted and activated very easily.

  • Resistance thermometers (RTD)
    Generation and measurement of RTD signals Pt100, Cu50
    Ω-generator function 0...400 Ω
    Ω-measurement function 0...450 Ω
    Accuracy (of reading + const.) ±0.05 %
    Selectable temperature unit °C / °F
    Measurement of multi-wire connections 2



    General data
    Features
    Sensor connection 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips
    Power supply 1 x 9 V monobloc battery Operating time approx. 25 h with auto-power-off
    PC Interface -
    Operator guidance Keypad
    Display Multifunction display LCD, 5½ digit
    Housing
    Version ABS plastic with protective cover
    Dimensions 200 x 100 x 40 mm (H x W x D)
    Weight Approx. 550 g
