Temperature sensors / Industry version with IO-Link

型號：Type IO3

Multi-talent → Communication via IO-Link, integrated analogue and switching output
Miniature design → Mounting even in limited space conditions
Efficient control due to very short response times
Connection with M12 connector/unshielded cable → significant cost and time savings
Remote access to sensor parameters → Easy configuration and setup
IO-Link transmits data purely digital → Exact, no conversion failures, interference proof
Easy to integrate into any fieldbus → Independent of control and fieldbus
Diagnostics down to field device level → Ensuring high plant availability

產品特點產品規格

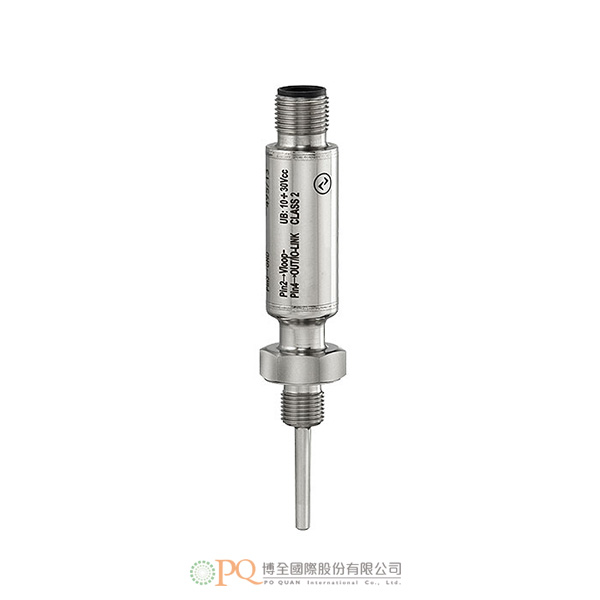

Despite its very compact design, the IO3 temperature sensor is a real all-rounder. Equipped with an IO-Link interface and an analogue and switching output, the sensor offers all common interfaces. IO-Link is the first, worldwide standardised IO technology for communicating with sensors - ideal for integration into your automation solution.

The bidirectional communication enables process data to be read out, extended diagnostics or simple and fast parameterisation. IO-Link is fieldbus-independent and can be integrated into all fieldbuses worldwide.

Possible applications include the measurement of cooling water, lubricating oil and hydraulic oil temperatures in machines and systems.

Technical data
Type	Temperature sensor with integrated IO-Link transmitter
Measuring range	-50…120 °C	-58...248 °F
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	13 or 24 mm	0.512 or 0.945“
Immersion tube diameter	3 mm	0.118“
Process connection	G⅛
Nominal pressure	PN 100
Medium temperature	-50...120 °C	-58...248 °F
Ambient temperature	-40...80 °C	-40...176 °F
Storage temperature	-40...80 °C	-40...176 °F
Degree of protection according to EN 60529	IP67
