Temperature sensors / Industry version with IO-Link

型號：Type IOM

Multi-talent → Communication via IO-Link and digital switching output
Compact design → Mounting even in limited space conditions
Connection with M12 connector/unshielded cable → significant cost and time savings
Remote access to sensor parameters → Easy configuration and setup
IO-Link transmits data purely digital → Exact, no conversion failures, interference proof
Easy to integrate into any fieldbus → Independent of control and fieldbus
Diagnostics down to field device level → Ensuring high plant availability

產品特點產品規格

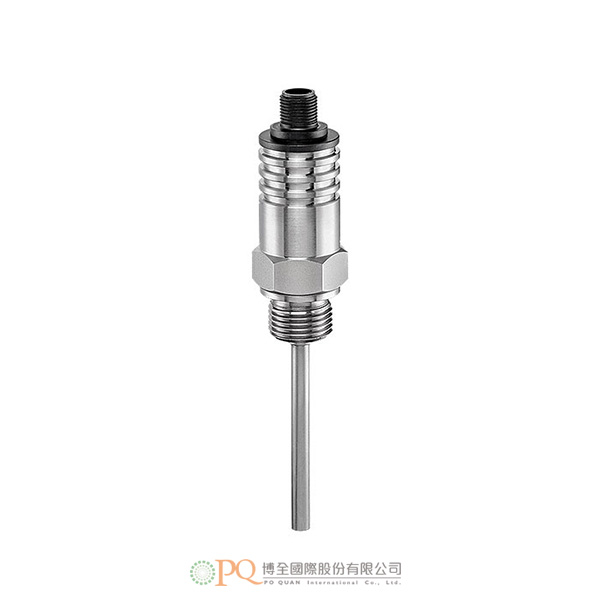

The compact temperature sensor type IOM is equipped with an IO-Link interface. IO-Link is the first, worldwide standardized IO technology to communicate with sensors - ideal for integration into your automation solution.

Bidirectional communication allows process data to be read out, extended diagnostics or simple and fast parameterization. IO-Link is fieldbus independent and can be integrated into any fieldbus worldwide.

Possible applications include the measurement of cooling water, lubricating oil and hydraulic oil temperatures in machines and systems.

Technical data
Type	Temperature sensor with integrated IO-Link transmitter
Measuring range	-50…200 °C	-58...392 °F
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	50...150 mm	1.969...5.906“
Immersion tube diameter	6 mm	0.236“
Process connection	G½, G¼
Nominal pressure	PN 25
Medium temperature	-50...200 °C	-58...392 °F
Ambient temperature	-20...80 °C	-4...176 °F
Storage temperature	-40...85 °C	-40...185 °F
Degree of protection according to EN 60529	IP65
