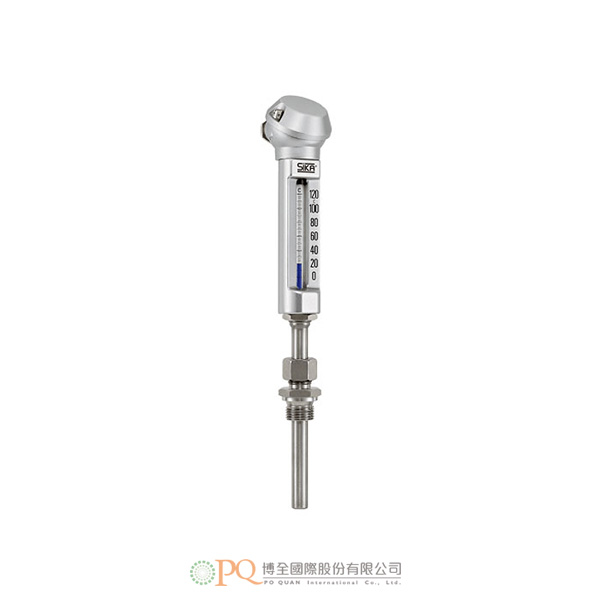

Mechatronic industrial thermometers / Industry version with connection head type

型號:Type KombiTemp K110 / K120
  • High measuring reliability due to two independent measuring points
  • Fast detection of faulty sensors or industrial thermometers in the plant to be checked
  • Low installation costs, advantages of the industrial thermometer
  • The SIKA KombiTemp® consists of a SIKA industrial glass thermometer and an electrical temperature sensor according to customer requirements in the same casing and immersion tube of the industrial thermometer.

    The combination of electrical sensor with local display has many advantages:

    • Temperature monitoring of two completely independent measuring systems.
    • Substantially increased measuring reliability, as the common measuring point makes it possible to directly compare the "on-site" display with the electrical temperature sensor and vice versa.
    • The installation costs for temperature measuring instruments are reduced, as only one measuring point needs to be set up for electrical temperature sensors and local temperature measurement.
  • Technical data

    Version

    Straight

    Dimensions housing

    110 x 30 mm

    Measuring range

    -30…200 °C

    Medium / Application

    Liquid and gaseous media

    Immersion tube length
    g Clamp connection
    g Fixed thread connection



    135 mm or 160 mm
    63 mm, 100 mm or 160 mm

    Immersion tube diameter

    12 x 1 mm

    Process connection
    g Clamp connection
    g Fixed thread connection




    G½ or M20 x 1.5

    Nominal pressure
    g Immersion tube brass
    g Immersion tube stainless steel



    PN 16
    PN 40

    Thermometer capillary

    Prismatic, Ø approx. 6 mm

    Thermometer filling
    g Blue

    -30...200 °C

    Medium temperature

    Depending on measuring range

    Ambient temperature

    -20…60 °C (only for indoor use)

    Storage temperature

    -25…60 °C

    Degree of protection EN 60529

    IP65
