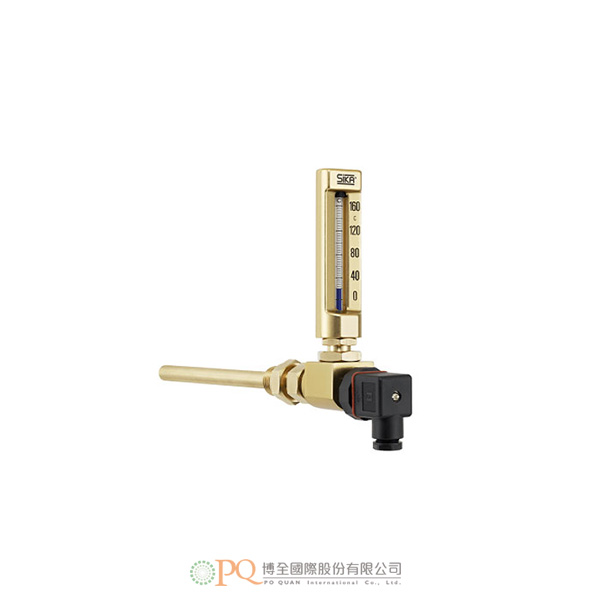

Mechatronic industrial thermometers / Marine version with angular connector

型號:Type KombiTemp K130 / K522
  • High measuring reliability due to two independent measuring points
  • Fast detection of faulty sensors or industrial thermometers in the plant to be checked
  • Low installation costs, advantages of the industrial thermometer
  • The SIKA KombiTemp® consists of a SIKA industrial glass thermometer and an electrical temperature sensor according to customer requirements in the same casing and immersion tube of the industrial thermometer.

    The combination of electrical sensor with local display has many advantages:

    • Temperature monitoring of two completely independent measuring systems.
    • Substantially increased measuring reliability, as the common measuring point makes it possible to directly compare the "on-site" display with the electrical temperature sensor and vice versa.
    • The installation costs for temperature measuring instruments are reduced, as only one measuring point needs to be set up for electrical temperature sensors and local temperature measurement.
  • Version Straight Angle 90°
    Dimensions housing 110 x 30 mm
    Measuring range -30…200 °C
    Medium / Application Liquid and gaseous media
    Immersion tube length 63 mm, 100 mm or 160 mm
    Immersion tube diameter 10 mm 12 mm
    Process connection
    g Fixed thread connection
    G½ or M20 x 1.5
    Nominal pressure
    g Immersion tube brass
    g Immersion tube stainless steel
    PN 16
    PN 40
    Thermometer capillary Prismatic, Ø approx. 6 mm
    Thermometer filling
    g Blue
    -30...200 °C
    Medium temperature Depending on measuring range
    Ambient temperature -20…60 °C (only for indoor use)
    Storage temperature -25…60 °C
    Degree of protection EN 60529 IP65
