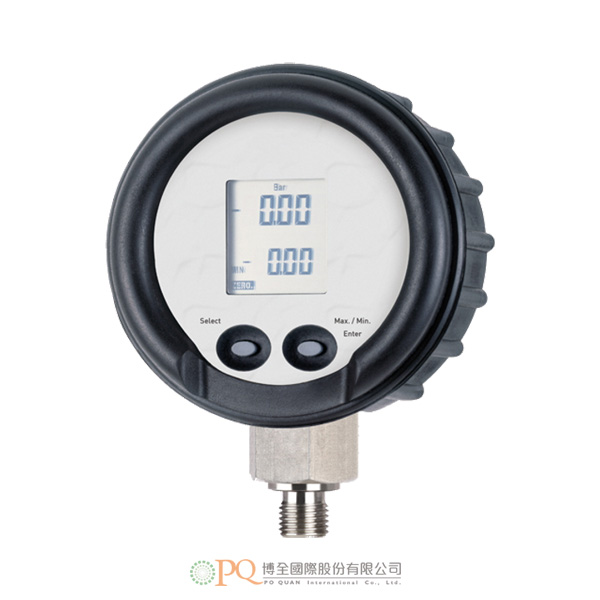

Precision digital pressure gauges / Industry version with explosion protection

型號:Type L-Ex
  • For use in potentially explosive areas
  • suitable for aggressive media
  • robust and compact design with edge protection
  • PC interface for direct data transmission
  • high accuracy
  • Digital pressure gauges are particularly suitable for both stationary and mobile measurement and display of pressures. The use as a pressure reference allows easy checking, setting and calibration of other pressure measuring devices directly on site

    • continuous or temporary checking of different system pressures
    • air-tightness measurement in building envelopes for the detection and elimination of faults as well as for the reduction of structural damage
    • checking the degree of contamination of filter systems in ventilation systems or air conditioning systems
    • recording of pressure drops for the determination of leakage devices in tightness tests
    • measurement of barometric air pressures for the determination of weather conditions
    • reference pressure gauge for calibration tasks
  • Technical data
    Type D-Ex L-Ex
    Pressure ranges Between -1...700 bar Between -1...1000 bar
    Accuracy (full scale) 0.1 % 0.05 %
    Adjustment options
    Tare / Zero P P
    Selectable units
    Pressure bar, mbar, hPa, kPa, MPa, PSI, kp/cm² bar, mbar, hPa, kPa, MPa, PSI, mmHg, inHg, cmH2O, mH2O, inH2O, ftH2O, Kp/cm²
    Features
    Measuring inputs PC connection 1 x direct 1 x direct
    RS 485
    Display
    Display
    Min / Max value
    Multi-functional LCD, 4 digit
    P
    Multi-functional LCD, 5 digit
    P
    Measuring rate
    Standard 500 ms 500 ms
    Process connection
    Thread Material Medium temperature For aggressive media G¼ / H16 UNF
    Stainless steel 1.0718 zinc-plated Stainless steel 1.4435
    0...50 °C
    P

    Stainless steel 1.4435 0...50 °C
    P
