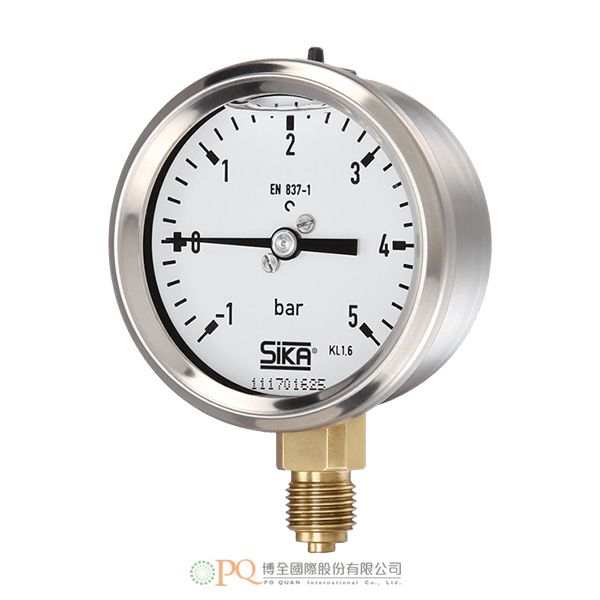

Bourdon tube pressure gauges without casing filling / Industry version

型號：Type MRE-MREG

產品特點產品規格

SIKA quality pressure gauges in industrial version with 100, 160 or 250 mm stainless steel casing are suitable for pressure measurement of gaseous and liquid media, but not for highly viscous or crystallising media.

DIN display ranges available from -1...0 bar up to 0...1,600 bar (up to...1,000 bar, brass connection; up to...1,600 bar with stainless steel connection). We manufacture special ranges on request.

The stainless steel casing is available either as a bayonet ring case (type MRE) or as a cramped-on ring case (type MRE-G)

Technical data
Type	MRE / MRE-g
Version	Bayonet ring case or crimped-on ring case
Nominal size	63 mm
Accuracy	EN 837-1, class 1.6 and class 2.5 (for display ranges 0...600 bar and 0...1000 bar)
Medium / Application	Liquid and gaseous media
Process connection	Thread see table , brass, optional stainless steel
Measurement system	Bourdon spring bronze, optional stainless steel
Degree of protection according to EN 60529	IP54 (IP65 for filled cases with closed pressure compensation insert)
Ambient temperature	-40 to 60 °C (-20 to 60 °C with case filling)
Storage temperature	-40 to 70 °C (-20 to 70 °C with case filling)
Medium temperature	Devices with brass connection max. 60 °C Devices with stainless steel connection max. 200 °C (max. 100 °C with case filling)
Nominal use temperature	20 °C*
Pressure load capacity	Of full-scale value
g Resting load g Dynamic load g Overload	75 % 65 % Max.
