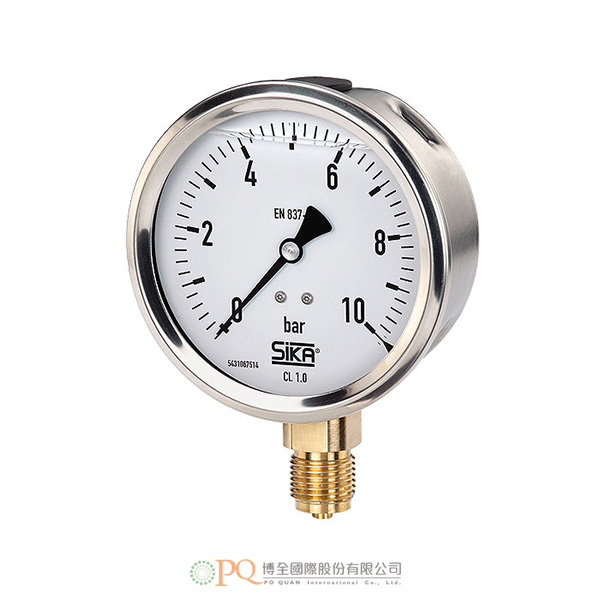

Bourdon tube pressure gauges with casing filling / Marine version
型號：Type MREM- Suitable for outdoor use - closed system
- casing completely stainless steel
- without electrical auxiliary energy
-
SIKA pressure gauges with 63 or 100 mm stainless steel casing in marine version are high-quality pressure gauges which we produce in common versions and large numbers. We keep these versions in stock especially for the shipbuilding industry.
DIN display ranges from -1...0 bar up to 0...1000 bar available.
The stainless steel casing is only available as cramped-on ring case, type MRE-g. The casing is vented via a pressure compensation insert.
-
Technical data Type MRE-M Version Crimped-on ring case Nominal size 63 mm, 100 mm Accuracy acc. EN 13190 EN 837-1, class 1.6 (nominal size 63 mm) and class 1 (nominal size 100 mm) Medium / Application Liquid and gaseous media Process connection Thread see table, brass Measurement system Bourdon spring bronze Degree of protection according to EN 60529 IP65 Ambient temperature -20 to 60 °C with case filling Storage temperature -20 to 60 °C with case filling Nominal use temperature acc. EN 13190 20 °C Pressure load capacity Of full-scale value Nominal size 63 mm Nominal size 100 mm g Resting load
g Dynamic load
g Overload75 %
65 %
Max. 100 %100 %
90 %
130 %
