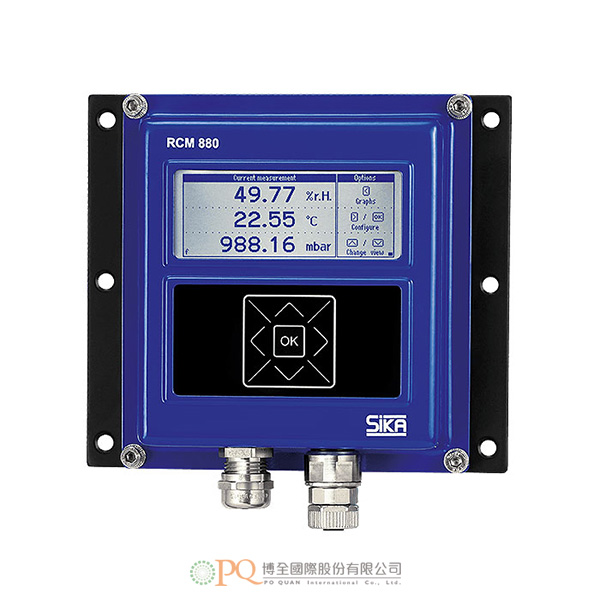

Room condition monitoring / Marine version

型號：Type RCM 880

Graphical trend display of all parameters g Intuitive recognition of process parameters and trends
Dirt-resistant keypad g Use in dusty or oily environments
Short set-up time g Preconfigured and easy mechanical and electrical installation
Best measuring performance g Interchangeable multisensor for temperature, humidity and ambient pressure
Highest quality g Insensitive to vibrations and electromagnetic interference
Extremely space-saving design
Ingress protection IP65
EU-RO approval for machinery room

產品特點產品規格

The room condition monitor RCM880 in combination with the SIKA multisensor E03 simultaneously monitors humidity, temperature and pressure at one measuring point. The robust measuring system is specially designed for use under extreme environmental conditions.

The digital 3-channel standard signal transmitter enables safe signal transmission, for example to engine control systems, and easy integration into your system.

The permanent monitoring of the operating condition guarantees safe, reliable operation, enables compliance with emission standards and is used to maximise efficiency as well as performance evaluation of marine engines.

Technical data
Version	Wall mounting
Dimensions (W x H x D) g Housing with mounting plate	170 mm x 150 mm x 35 mm	6.693“ x 5.906“ x 1.378“
Display g Type g Backlight g Size (W x H) g Resolution	Dot matrix graphic display Yes (adjustable)
	83 mm x 33 mm	3.268“ x 1.300“
	256 x 100 Pixel
Indication accuracy	0.01
Operating elements	5 capacitive keys
Measuring rate	1 s
Ambient temperature	-20…70 °C	-4...158 °F
Storage temperature	-20…70 °C	-4...158 °F
Degree of protection EN 60529	IP65, plug & cable connected
Approvals
EU RO Mutual Recognition Type Approval Certificate (Covers: ABS, BV, CCS, CRS, DNV GL, IRS, KR, LR, ClassNK, PRS, RINA, RS)
