Reference temperature sensors / Accessoires for SIKA Temperature calibrators

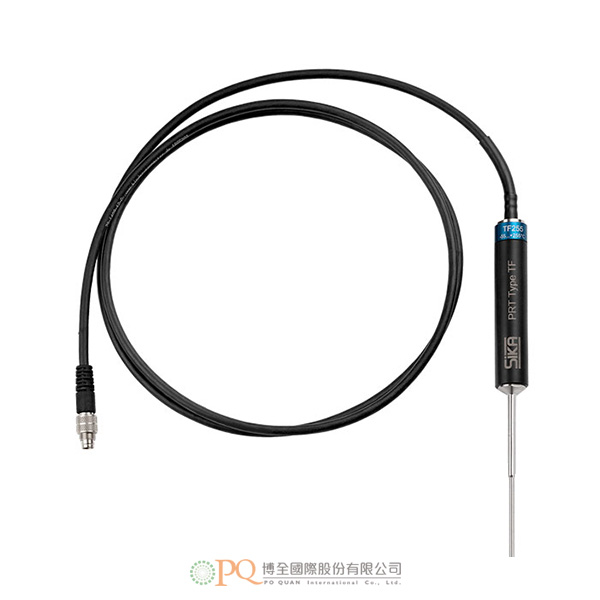

型號：Type TF255

Artificially aged by annealing to reduce long-term drift
Best performance among SIKA temperature sensors
Handmade, with experience from over 120 years of temperature measurement technology

產品特點產品規格

When calibrating the measurand temperature, the optimal measurement of the reference temperature is essential for a reliable calibration result.

Our reference temperature sensors TF 255 and TF 700 have been developed for exactly this purpose and represent the spearhead of SIKA temperature sensors. We use the highest quality components and reduce the long-term drift of the sensors by subjecting each sensor to a 300 hour annealing process before selling it to our customers.

The technological data of our TF sensors can be compared with those of other standard thermometers (SPRT).

Type	TF255, straight design		TF255, angled design		TF700
Immersion tube dimensions [mm]	Ø 3x300, straight		Ø 3x300, 90° angled		Ø 4.5x300, straight
Immersion tube dimensions [inch]	Ø 0.118x11.811, straigth		Ø 0.118x11.811, 90° angled		Ø 0.177x11.811, straight
Technical data defined for temperature range	-55…255 °C	-67...491 °F	-55…255 °C	-67...491 °F	5…700 °C	41...1292 °F
Measuring element	Pt100, 4-wire		Pt100, 4-wire		Pt100, 4-wire
Measuring resistor	Flat measuring resistor		Flat measuring resistor		Coiled
Sensitiv length	2.3 mm	0.091"	2.3 mm	0.091"	25 mm	0.984"
Position of the sensitive length [mm]	Approx. 1.5 from sensor tip		Approx. 1.5 from sensor tip		Approx. 1.5 from sensor tip
Position of the sensitive length [inch]	Approx. 0.591 from sensor tip		Approx. 0.591 from sensor tip		Approx. 0.591 from sensor tip
Long-term stability (100h)	±0.015 °C	±0.027 °F	±0.015 °C	±0.027 °F	±0.080 °C	±0.144 °F
Hysteresis	±0.010 °C	±0.018 °F	±0.010 °C	±0.018 °F	±0.030 °C	±0.054 °F
t90 [sec]	5		5		31
Self-heating (1mA)	0.010 °C	0.018 °F	0.010 °C	0.018 °F	0.015 °C	0.027 °F
Repeatability at 0 °C / 23 °F	±0.005 °C	±0.009 °F	±0.005 °C	±0.009 °F	±0.005 °C	±0.009 °F
R0	100 Ohm		100 Ohm		>100 Ohm (increased R0 for optimal measurements above room temperature)
Weight	140 g		140 g		155 g
Material immersion tube	Stainless steel		Stainless steel		Inconel
Connector plug	Sensor plug M9 4-pin		Sensor plug M9 4-pin		Sensor plug M9 4-pin
