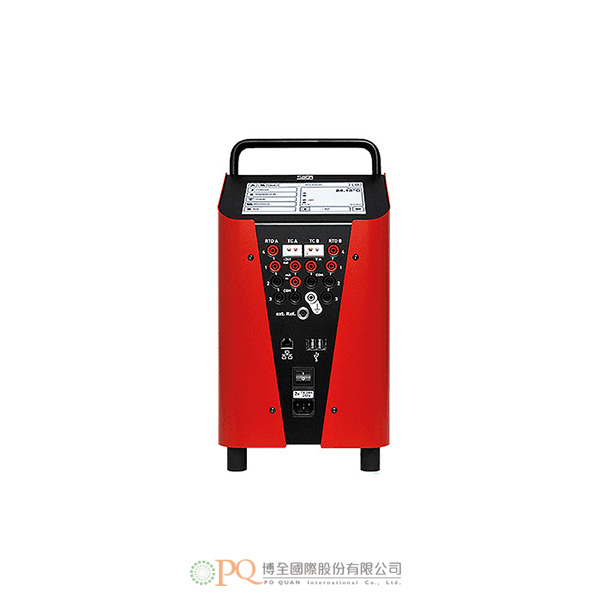

TP Premium / Dryblock-temperature calibrator

型號：Type TP 37200E.2

Patented control technology - time saving up to 50 %
fastest stabilisation times on the market
patented touch screen function

加入洽詢

產品特點產品規格

Whether for on-site use in the workshop, in the measuring and test room or laboratory, SIKA temperature calibrators can be used everywhere. A wide range of industries and various application areas are covered.
- assembly, commissioning
- manufacturing, production
- maintenance, service
- quality assurance, test equipment monitoring
- repair
Dry block function

The dry block function was developed to enable easy calibration of the temperature in lab and field applications. The optimum thermal coupling from block to DUT is achieved by the correct calibration insert. Ideally, the inner diameter of the bore hole in the calibration insert is 0.5 mm larger than the outer diameter of the DUT. With the help of the calibration insert almost all straight temperature sensors with different lengths and diameters can be calibrated. The dry block covers the entire temperature range without changing the calibration medium. The user does not have to take viscosities, flash points or outgassing into consideration.

Accessories

The extensive range of accessories for the TP Premium series enables time-saving calibration setups. For example, DUT can be identified via barcode scanner or an ongoing or already completed calibration process can be displayed via WLAN connection on a PC or smartphone anywhere in the world. Thanks to the possibility of connecting an external measuring bridge directly to the calibrators, many DUT can be calibrated at the same time – including automatic generation of individual SIKA works calibration certificates.

Temperature range		-55...200 °C at ambient temperature 20 °C		-31...329 °F at ambient temperature 68 °F
Dimension of the calibration insert		Ø 28 x 150 mm (calibration insert easily exchangeable)
Dry block External reference temperature sensor Internal reference temperature sensor
Display accuracy		±0.27 °C	±0.486 °F	±0.34 °C	±0.612 °F
Temperature stability		±0.003 °C	±0.0054 °F	±0.020 °C	±0.036 °F
Temperature distribution g Axial g Radial		±0.250 °C ±0.070 °C		±0.450 °F ±0.126 °F
Influence of load		±0.070 °C	±0.126 °F	±0.220 °C	±0.396 °F
Stabilisation time (with external reference temperature sensor)		From 1 min From 5 min
g to ±0.05°C g to ±0.005°C	g to ±0.09 °F g to ±0.009 °F
Heating time		9 min 12 min
g 20 °C...200 °C g -55 °C...200 °C	g 68...392 °F g -67...392 °F
Cooling time		35 min 18 min
g 20 °C...-55 °C g 200 °C...20 °C	g 68...-67 °F g 329...68 °F
Resolution of the temperature display		0.1 / 0.01 / 0.001 °C (selectable)		0.1/0.01/0.001 °F (selectable)
Hysteresis		±0.010 °C		±0.018°F
Temperature units		°C / °F / K (selectable)
Reference temperature sensor		internal, fixed installation / external (selectable)
Interfaces		Ethernet, 3 x USB
Connectivity		OPC UA, serial communication, HTTP. Details and further possibilities on request.
Dimensions
g Width g Height g Depth		210 mm 380 + 50 mm (Handle) 300 mm
Weight		Approx. 15 kg
Power supply		100...240 VAC, 50 / 60 Hz
Power consumption		Approx. 555 W
Adjustable temperature range		-60...200 °C -76...392 °F
Display		Brilliant color touchscreen (7 inches), multi panel safety glass
