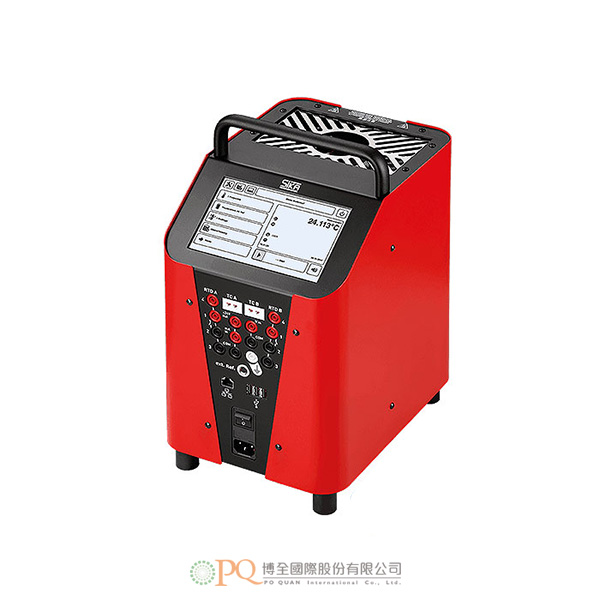

TP Premium / Dryblock-temperature calibrator
型號:Type TP 37450E.2- Patented control technology - time saving up to 50 %
- fastest stabilisation times on the market
- patented touch screen function
-
Whether for on-site use in the workshop, in the measuring and test room or laboratory, SIKA temperature calibrators can be used everywhere. A wide range of industries and various application areas are covered.
- assembly, commissioning
- manufacturing, production
- maintenance, service
- quality assurance, test equipment monitoring
- repair
Dry block function
The dry block function was developed to enable easy calibration of the temperature in lab and field applications. The optimum thermal coupling from block to DUT is achieved by the correct calibration insert. Ideally, the inner diameter of the bore hole in the calibration insert is 0.5 mm larger than the outer diameter of the DUT. With the help of the calibration insert almost all straight temperature sensors with different lengths and diameters can be calibrated. The dry block covers the entire temperature range without changing the calibration medium. The user does not have to take viscosities, flash points or outgassing into consideration.
Dark-radiation function
A patented infrared calibration insert is used to calibrate IR pyrometers or thermal imaging cameras. The special surface structure and the asymmetrical shapes form a "black cavity radiator" with an emission factor of 0.9994 and prevent the reflection of interfering radiation and emit the desired temperature in an ideal form. The pyrometer is simply held at the prescribed distance above the measuring port and thus forms the desired measuring spot for the calibration to be carried out on the ground. The direct mounting of a tripod is possible.
Surface temperature function
Surface temperature sensors are calibrated by means of special calibration inserts which are placed vertically with the required contact pressure. The best possible temperature reference point on the surface of the calibration insert is found by switching the calibrator control to the external reference temperature sensor. This is located directly under the front face of the calibration insert. The calibration insert is designed in such a way that the best temperature homogeneity is achieved in the middle of the front face. A good thermal contact is enabled by the special surface structure of the front face. The use of heat-conducting paste or other heat transfer media is not necessary.
Accessories
The extensive range of accessories for the TP Premium series enables time-saving calibration setups. For example, DUT can be identified via barcode scanner or an ongoing or already completed calibration process can be displayed via WLAN connection on a PC or smartphone anywhere in the world. Thanks to the possibility of connecting an external measuring bridge directly to the calibrators, many DUT can be calibrated at the same time – including automatic generation of individual SIKA works calibration certificates.
-
Temperature range
Room temperature...450 °C
Room temperature...842 °F
Dimension of the calibration insert
Ø 60 x 150 mm (calibration insert easily exchangeable)
Dry block Air Shield Insert
External reference temperature sensor
Display accuracy
±0.2 °C
±0.36 °F
Temperature stability
±0.010 °C
±0.018 °F
Temperature distribution
g Axial
g Radial±0.100 °C
±0.015 °C±0.18 °F
±0.027 °FInfluence of load
±0.010 °C
±0.018 °F
Dry block
External reference temperature sensor
Internal reference temperature sensor
Display accuracy
±0.25 °C
±0.45 °F
±0.3 °C
±0.54 °F
Temperature stability
±0.010 °C
±0.018 °F
±0.030 °C
±0.054 °F
Temperature distribution
g Axial
g Radial±0.300 °C
±0.060 °C±0.54 °F
±1.08 °F±0.300 °C
±0.060 °C±0.54 °F
±1.08 °FInfluence of load
±0.015 °C
±0.027 °F
±0.015 °C
±0.027 °F
Infrared calibration
External reference temperature sensor
Internal reference temperature sensor
Display accuracy
±0.5 °C
±0.9 °F
±0.5 °C
±0.9 °F
Temperature stability
±0.030 °C
±0.054 °F
±0.100 °C
±0.18 °F
Emission factor
0,9994
Surface calibration
External reference temperature sensor
Display accuracy
±1 °C
±1.8 °F
Temperature stability
±0.250 °C
±0.45 °F
General data
Stabilisation time
(with external reference temperature sensor)From 1 min
From 5 ming to ±0.05°C
g to ±0.005°Cg to ±0.09 °F
g to ±0.009 °FHeating time
17 min
g 20 °C...440 °C
g 68...824 °F
Cooling time
36 min
g 450 °C...30 °C
g 824...86 °F
Resolution of the temperature display
0.1 / 0.01 / 0.001 °C (selectable)
0.1/0.01/0.001 °F (selectable)
Hysteresis
±0.010 °C
±0.018 °F
Temperature units
°C / °F / K (selectable)
Reference temperature sensor
Internal / external (selectable)
Interfaces
Ethernet, 3 x USB
Connectivity
OPC UA, serial communication, HTTP. Details and further possibilities on request.
Dimensions
g Width
g Height
g Depth210 mm
330 mm + 50 mm (Handle)
300 mmWeight
11 kg
Power supply
110...115 V 60 Hz / 230 V 50 Hz
Protective conductor (PE) neededPower consumption
Approx. 1000 W
Adjustable temperature range
0...450 °C
-76...842 °F
Display
Brilliant color touchscreen (7 inches), multi panel safety glass
