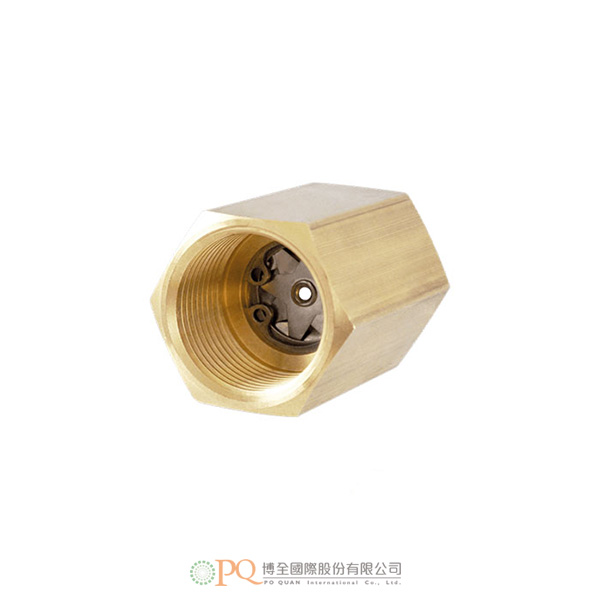

Flow regulators / Brass version
型號：Type VB MS- Compact design
- simple installation
- reliable thanks to no wear parts
- no auxiliary energy required
-
SIKA flow regulators are used to ensure a constant flow of water and aqueous media. Can be found in:
- cooling water systems
- water treatment
- sanitary installations
- industrial water distribution systems
Under the influence of the occurring differential pressure, the free cross-section for the flow medium is changed accordingly in the control unit. By enlarging the gap opening when the pressure decreases or reducing the gap when the pressure increases, the volumetric flow is kept constant by the SIKA flow regulator.
-
VB15xxSR
Type
Set value (flow rate) [l/min]*
VB1503SR...
3
VB1504SR...
4
VB1506SR...
6
VB1507SR...
7
VB1508SR...
8
VB1510SR...
10
VB1512SR...
12
General data
Tolerance of control
≤ 5 l/min: ±15 %
> 5 l/min: ±10 %Medium temperature
10...60 °C
Working pressure
1...10 bar
Diameter
DN 15
Process connection
G½
VB15xxER, VB20xxER
Type
Set value (flow rate) [l/min]*
VB2001ER...
1
Set values 1...30 l/min
in 1 l/min steps availableVB2030ER...
30
General data
Tolerance of control
< 3 l/min: ±15 %
> 3 l/min: ±10 %Medium temperature
-20...200 °C
Working pressure
2...10 bar
Diameter
DN 20 (optional DN 15)
Process connection
G¾ (optional G½)
* Water, 20 °C
