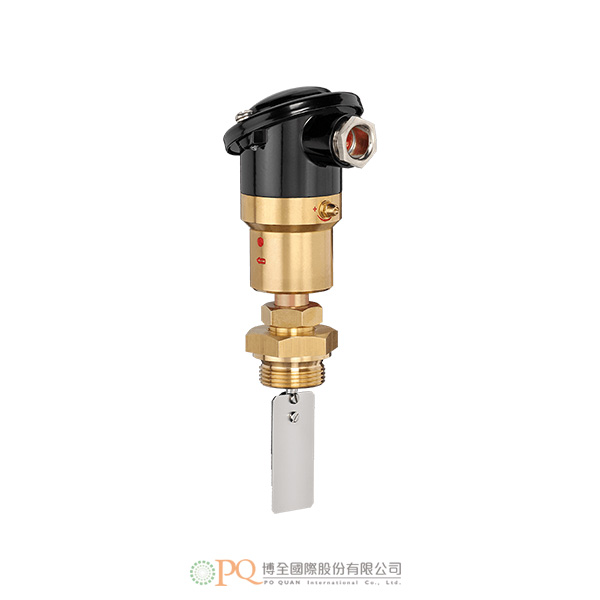

Flow switches for insertion installation / Metal version for marine applications
型號：Type VH500- DNV GL type approval
- Suitable for water, oil, etc.
- Adjustment to nominal diameter and setpoint setting by selecting the baffle flag
- Insertion installation in pipelines or tees DN 25...DN 50
- High switching currents due to micro switch as signal transmitter
- Vibration resistance up to 4 g
-
SIKA flow monitors monitor the liquid flow of low-viscosity media in pipelines. The SIKA paddle flow monitor VH500 is particularly suitable for marine applications, e.g. cooling water monitoring, lubrication control and leakage monitoring of ship engines and compressors.
The flowing medium hits the baffle flag attached to the end of a paddle. The paddle is deflected by the resulting dynamic pressure and actuates a micro switch.
-
Technical data Switching function Change over contact Pressure rating (Test pressure) Max. 6 bar (10 bar)
or max. 10 bar (15 bar)Temperatures Medium Max. 100 °C Ambient Max. 85 °C Electrical data Max. contact rating 24 VDC, 5 A resistive load
4 A inductive load
60 VDC, 1 A resistive load
0.5 A inductive load
250 VAC, 10 A resistive load
10 A inductive loadDegree of protection EN 60529 IP54 Protection class EN 60730-1 Class I
