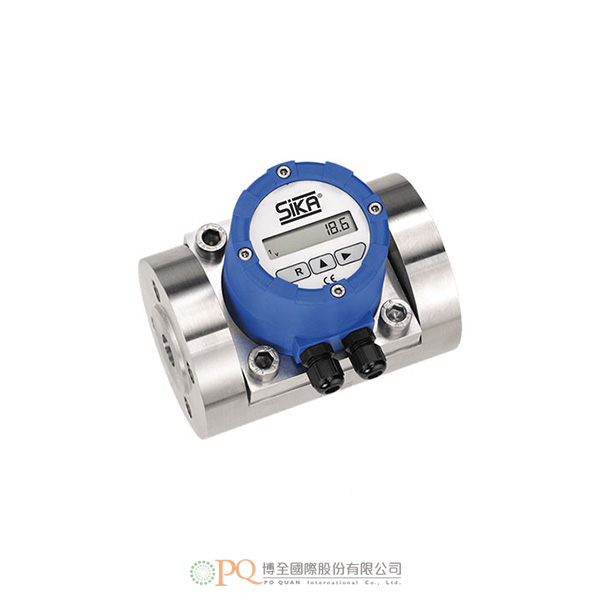

Oval gear flow meter flange connection / Stainless steel casing and PEEK sensor

型號：Type VO…VP Flange
  • very good accuracy and repeatability
  • low pressure drop
  • suitable for industrial and chemical liquids, mineral oils and fuels
  • insensitive to vibration, pressure changes and viscosity changes
加入洽詢
產品特點 產品規格

  • The SIKA oval wheel meters were developed for volume and volumetric flow measurement of liquids. They are used in applications such as lubricant monitoring or food and beverage production.

    • displacement flow meters with direct recording of the volume
    • no inlet and outlet sections required
    • high-quality construction for long service life and high reliability
    • high long-term stability
    • high measuring accuracy and repeatability
    • easy installation

    Oval wheel meters are displacement flow meters that transport defined partial volumes in individual measuring chambers. The sensor element consists of two high-precision, toothed oval wheels that are driven by the flow of the medium and roll upon each other. With each revolution of the oval wheel pair, a specific volume is thus transported. The number of revolutions is the measure of the amount of liquid passed through. The revolutions are recorded by a sensor element.

  • Technical data

    Type

    VO015

    VO06

    VO1

    VO2

    VO5

    VO10

    VO50

    VO115

    Measuring range [l/min]
    →Oval gears stainless steel
    →Oval gears PEEK



    0.03...1
    0.03...1



    0.2...5
    0.2...7



    0.4...10
    0.4...14



    1...30
    1...30



    2...50
    2...60



    4...100
    3...120



    15...300



    35...660

    not available

    Process connection
    →Thread
    →Flange (according to DIN EN 1092-1)



    G¼



    G½



    G½



    G¾ DN 15



    G 1



    G 1
    DN 25



    G 2
    DN 50



    G 2
    DN 50

    Nominal puls rate [1/l]

    3100

    333

    166

    100

    40

    20

    4

    1.7



    Technical data

    Type

    VO...VA
    Housing stainless steel
    Oval gears stainless steel

    VO...VP
    Housing stainless steel
    Oval gears PEEK

    VO...AP
    Housing aluminium
    Oval gears PEEK

    Accuracy*

    ±0.5 % of reading

    Repeatability*

    < 0.05 %

    Pressure rating

    PN 68 (PN 25 with FEP O-ring)

    PN 40 (PN 25 with FEP O-ring)

    Temperature range

    Standard

    -20...80 °C

    -20...70 °C

    -10...80 °C

    High temperature sensor

    -25...130 °C

    not available

    Materials

    Housing

    Stainless steel

    Stainless steel

    Aluminium

    Oval gears

    Stainless steel

    PEEK

    PEEK

    O-ring

    FKM (standard) or EPDM (option) or FEP (option)

    FKM (standard) or EPDM (option) or FEP (option)

    FKM (standard) or EPDM (option) or FEP (option)

    Medium

    Allowable Viscosity

    0.3...350 mPa s

    0.3...150 mPa s

    Max. particle size

    25...100 µm

    Electrical data

    Supply voltage
    →Standard
    →High temperature sensor



    10...30 VDC
    18...30 VDC



    10...30 VDC



    10...30 VDC

    Electrical connection
    →Standard
    →High temperature sensor



    M12 x 1 connector
    2 m silicone cable, 3 x 0.14 mm

    Signal output

    Standard

    NPN, PNP

    NPN, PNP

    NPN, PNP

    High temperature sensor

    PNP

    not available

    Degree of protection EN 60529

    IP67



    *        Test conditions:
    g Viscosity >3 mPa s
    g Media temperature 20 °C
