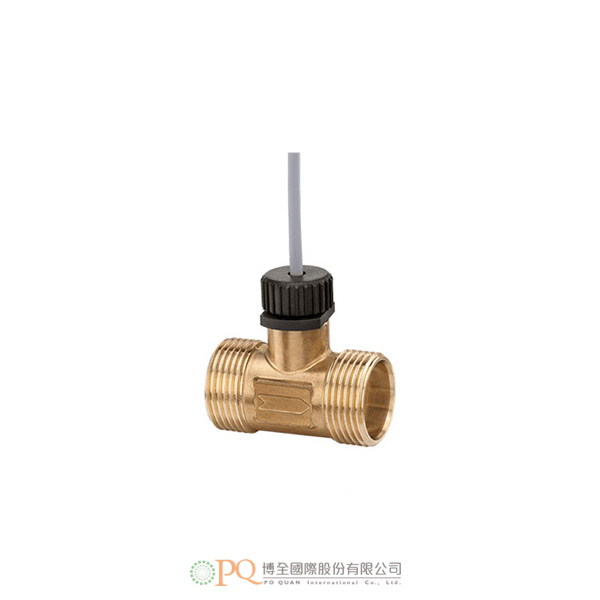

Turbine flow sensors with threaded connection / Version for HVAC and industrial
型號：Type VT20- With protective circuit
- high resolution of the output signal
-
The SIKA turbine flow sensor type VT20 is used for flow measurement and dosing in water and water mixtures. The sensor is used in many applications, including:
- monitoring of cooling circuits in machine and plant construction
- water treatment
- cleaning processes
- dosing
The liquid flowing into the turbine flow sensor is divided into partial jets by the blading. These hit the rotor uniformly from different directions and cause it to rotate. The speed of the rotor is now converted into an electrical pulse signal (frequency): The rotor is equipped with magnets, a Hall effect sensor detects the rotational movement.
A flow proportional frequency signal (square wave signal) is available.
The geometry of the blading and rotor enables the realization of very low start-up values.
Series VTH20 VTL20 - With protection circuit
- High resolution of output signal
- Cost optimized version
-
Type VTH20 VTL20 Material pipe section Brass Flow range 1...42 l/min* Accuracy ±1 % of range
±3 % of reading (from 15 l/min)Repeatability ±0.2 % Signal output From 0.25 l/min Medium temperature Max. 85 °C Pressure rating PN 10 Nominal diameter DN 20 Process connection G 1 male thread Sensor Hall effect sensor Output signal
→Pulse rate / K-factor
→Resolution
→Signal shape→Signal current
232 pulses/l
4.3 ml/pulse
Square wave signal NPN open collectorMax. 19 mA
116 pulses/l
8.6 ml/pulse
Square wave signal NPN open collector
Pulse duty ratio 50:50
Max. 10 mAElectrical connection 2 m PVC cable, shielded (Tmax = 75 °C) Power supply 10...30 VDC
optional 4.5...26.5 VDC4.5...24 VDC Degree of protection EN 60529 IP54 Max. particle size in the medium < 0.63 mm * not suitable for continuous operation
