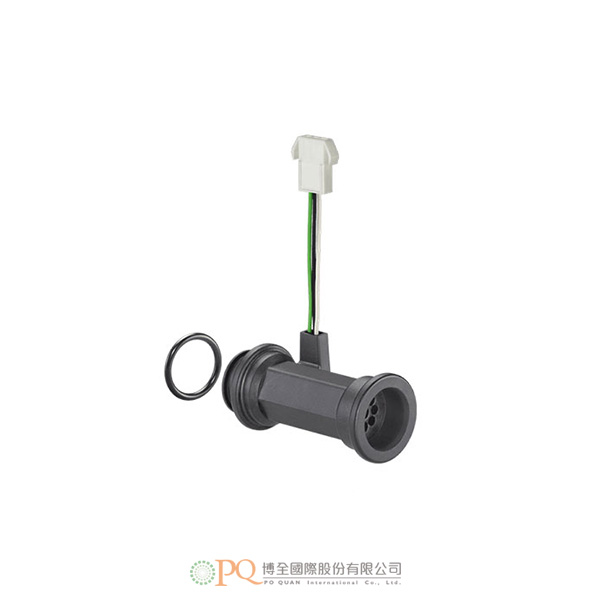

Turbine flow sensors with QuickFasten connection / Plastic version for HVAC appl

型號：Type VTY10 K

Approved for drinking water
Low wear and extremely long service life due to high-quality bearings
virtually no series dispersion due to fixed pulse rate
threaded connection or QuickFasten, proven in numerous large series applications
high measuring accuracy, largely independent of the installation position due to integrated flow straightener

加入洽詢

產品特點產品規格

Turbine flow sensors of the VTY series have been specially developed for use in potable water series applications.

The sensors of the VTY series are used, among other things, for measuring potable water tap quantities.

The liquid flowing into the turbine flow sensor is divided into partial jets by the perforated disc. These hit the rotor uniformly and cause it to rotate. The rotor speed is now converted into an electrical pulse signal (frequency): The rotor is equipped with magnets, a Hall effect sensor detects the rotational movement.

A frequency signal (square wave signal) which is proportional to the flow is available.

Due to the uniform flow to the bearing, the forces largely cancel each other out and wear is reduced to a minimum. The extremely hard bearing materials, sapphire and hard metal, also guarantee an exceptional service life.

low wear and extremely long service life due to high-quality bearings
virtually no series dispersion due to fixed pulse rate
insensitive to water hammers
proven in numerous large series applications
high measuring accuracy, largely independent of the installation position due to integrated flow straightener

Series	VTY10
	Low wear and extremely long durability due to high quality bearing Practically no deviation in mass production due to fixed pulse rate Threaded connection or QuickFasten, proven in numerous mass production applications High measuring accuracy, mostly independent of fitting position due to integrated flow straightener

Technical data	VTY10 threaded		VTY QuickFasten
Material pipe section	Brass	Plastic	Plastic
Flow range	1...30 l/min
Accuracy	±1 % of range
Repeatability	±1 %
Signal output	From 0.7 l/min	From 0.6 l/min
Medium temperature	0...90 °C (non-freezing), temporary 95 °C	0...85 °C (non-freezing), temporary 95 °C	0...70 °C (non-freezing), temporary 95 °C
Ambient temperature	0...70 °C
Pressure rating	PN 16	PN 10
Nominal diameter	DN 10
Process connection	G½ male thread	G¾ male thread	QuickFasten
Sensor	Hall effect sensor
Output signal	Square wave frequency signal, NPN open collector
Pulse duty ratio	50:50
Pulse rate / K-factor	495 pulses/l	530 pulses/l
Electrical connection	80 mm (QuickFasten 90 mm) single wire with Molex Mini-Fit® Jr. plug connector (part number 39-01-4036)
	Optional: PVC-cable (1 m), optional single wires		Optional: Single wires (115 mm)
Power supply	4.5...24 VDC
