Positive displacement flow sensors with threaded connection / Aluminium casing

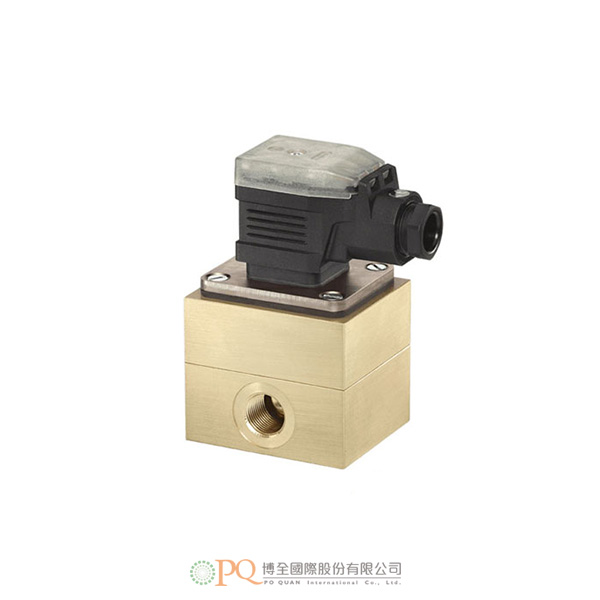

型號：Type VZ AL

Various casing and sealing materials. Universally applicable for different media to be measured
Standard process connection via connection plates. Quickly replaceable without long process interruption
output signal: Pulse signal

加入洽詢

產品特點產品規格

The SIKA gearwheel volume sensors are suitable for the detection of volumetric flows with high as well as varying viscosity in the following areas of application, among others:

consumption measurement
control of filling processes
dosing of oils and chemicals
detection of paints / varnishes

A very precisely fitted pair of gearwheels inside the housing forms the measuring unit. The inflowing medium sets the gearwheel pair in rotation. The rotary movement is scanned by sensors without contact. Since each individual tooth generates a pulse, this results in a very high resolution. Thus, even the smallest volumes can be measured or dosed exactly.

The maximum pressure drop should not exceed 16 bar. This limits the measuring range for highly viscous media (see pressure drop diagrams).

Your advantages
Series	VZAL
	Variety of casing and sealing materials g Universally use for different measurement media Standard process connection via connecting plates g Quickly replaceable without lengthy interruptionsto the process Output signal: pulse signal

Type	VZ0.04AL	VZ0.2AL	VZ2AL	VZ5AL
Technical data
Size	0.04	0.2	2	5
Process connection	G¼	G⅜	G¾	G 1
Measuring range [l/min]*	0.02...4	0.16...16	1...65	1...200
Geometric gear volume [cm³]	0.04	0.245	2	5.222
Measuring accuracy	±2 % of reading	±1 % of reading	±2,5 % of reading	±1 % of reading
Repeatability	Up to 0.5 % under same conditions
Start of gear wheel rotation [l/min]	0.004	0.01	0.12	0.1
Viscosity of medium	20...4000 mm²/s	1...3000 mm²/s	20...4000 mm²/s	20...4000 mm²/s
Medium temperature range	-10...80 °C integrated preamplifier 0...60 °C without preamplifier (for TD8250)
Ambient temperature	-10...80 °C
Pressure rating	Max. 200 bar	Max. 160 bar	Max. 160 bar	Max. 80 bar
Pressure peaks	Max. 240 bar	Max. 200 bar	Max. 200 bar	Max. 100 bar
Indication	Cable socket with one LED for pulse signal	Cable socket with two LED for pulse signal (two channels)	Cable socket with one LED for pulse signal	Cable socket with one LED for pulse signal
Degree of protection EN 60529	IP65
Weight [kg]	0.5	0.7	1.9	6
Output signals
→Puls rate [Pulse/l]	25 000	4081.63	500	191.5
→Resolution [ml/Puls]	0.04	0.245	2	5.222
→Signal shape	Pulse signal, squarewave, PNP, pulse duty ratio 1:1 ±15 %
Electrical data
Electrical connection	Plug connector cable socket
Power supply	12...30 V DC reverse polarity protection
Power consumtion [short-circuit proof]	0.6 W	0.9 W	0.6 W	0.6 W
