SIKA > 溫度測量
35

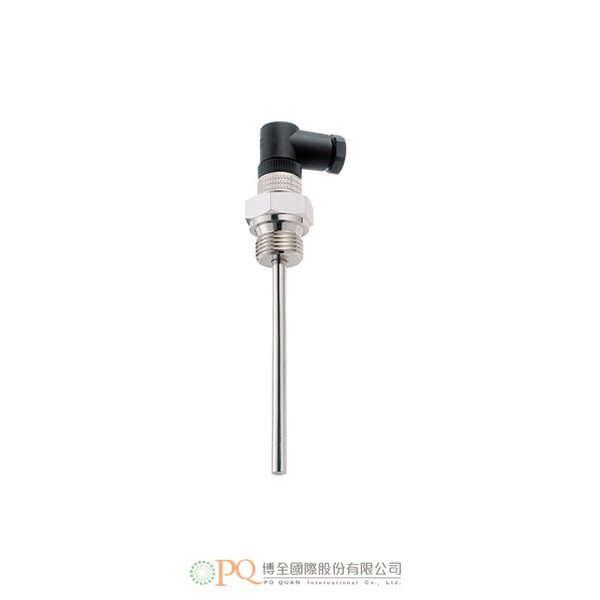

Temperature sensor / Industry version with connector

型號：Type W08
  • Safe and compact electrical connection thanks to M12 angle plug
  • High protection class against moisture, dust and dirt ingress
  • Very high vibration resistance. Reliable and long-lasting operation
  • Customised variant possible. Easy integration into plants / systems
加入洽詢
產品特點 產品規格
    • Safe and compact electrical connection thanks to M12 angle plug
    • High protection class against moisture, dust and dirt ingress
    • Very high vibration resistance. Reliable and long-lasting operation
    • Customised variant possible. Easy integration into plants / systems
  • Technical data
    Type Temperature sensor with angled plug M12
    Measuring range -30…200 °C
    Measuring medium Water and aqueous liquids, non-aggressive gases
    Immersion tube length 50...200 mm
    Immersion tube diameter 6 or 8 mm
    Process connection G¼, G½, M14 x 1.5 or M18 x 1.5
    Nominal pressure PN 25
    Medium temperature -30...200 °C
    Ambient temperature -40...85 °C
    Storage temperature -25...70 °C
    Degree of protection according to EN 60529 IP65
