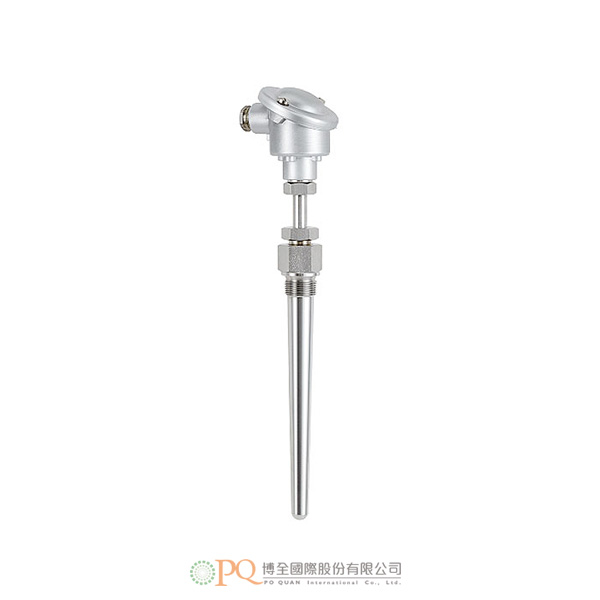

Temperature sensors / Marine version with connection head

型號:Type W20
  • For exhaust gas temperature measurement on Diesel and gas engines. Up to 600 °C medium temperature
  • Very high vibration resistance, reliable and long-lasting operation
  • Customised variant possible. Easy integration into plants / systems
  • Available as single and double resistance thermometer or thermocouple
  • Optionally integrable transducers. Easy integration into process control systems
  • The application areas for temperature sensors are very individual and the conditions are often harsh. Different requirements have to be taken into account during realisation:

    • special installation situations
    • special environmental conditions
    • vibration resistance
    • short response times
    • long service lives

    Your advantage: our experienced design staff know and observe the required demands. This leads to reliable and targeted problem solution.

    Our products convince through durability, robustness and precision. In order to meet all quality requirements, SIKA develops and produces exclusively in Germany. This guarantees easy co-engineering between us and our customers, high-quality branded goods and on-time delivery.

  • Technical data
    Type Temperature sensor with protection tube type 2
    Measuring range 0…600 °C
    Measuring medium Exhaust gases marine diesel engines
    Protection tube length 100...300 mm
    Protection tube diameter 14, 17 or 20 mm conical
    Process connection G½, G¾, M27 x 2, M33 x 2
    Nominal pressure PN 25
    Medium temperature 0...600 °C
    Ambient temperature -50...85 °C
    Storage temperature -25...70 °C
    Degree of protection according to EN 60529 IP54
    Approvals
    DNV
