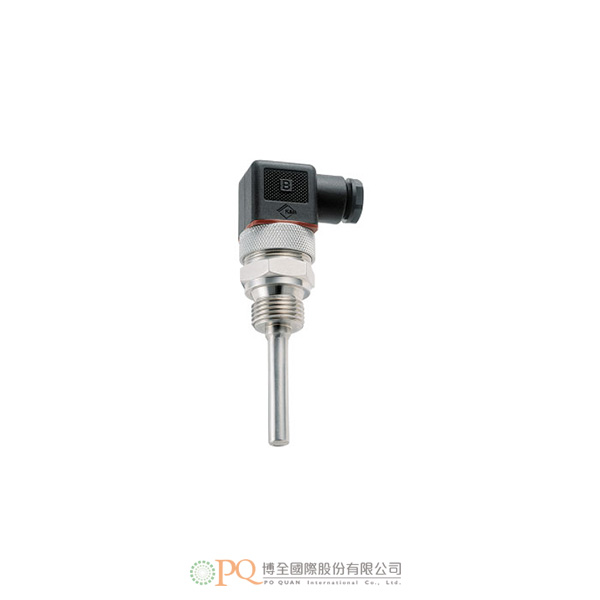

Temperature sensors / Marine version with connector

型號:Type W30
  • Safe and compact electrical connection thanks to DIN angle plug
  • High protection class against moisture, dust and dirt ingress
  • Very high vibration resistance. Reliable and long-lasting operation
  • Customised variant possible. Easy integration into plants / systems
  • The application areas for temperature sensors are very individual and the conditions are often harsh. Different requirements have to be taken into account during realisation:

    • special installation situations
    • special environmental conditions
    • vibration resistance
    • short response times
    • long service lives

    Your advantage: our experienced design staff know and observe the required demands. This leads to reliable and targeted problem solution.

    Our products convince through durability, robustness and precision. In order to meet all quality requirements, SIKA develops and produces exclusively in Germany. This guarantees easy co-engineering between us and our customers, high-quality branded goods and on-time delivery.

  • Technical data
    Type Temperature sensor with angled plug
    Measuring range -50…200 °C
    Measuring medium Water and aqueous liquids, non-aggressive gases
    Immersion tube length 50...200 mm
    Immersion tube diameter 6 or 8 mm
    Process connection G½, G¾, M18 x 1.5 or M20 x 1.5
    Nominal pressure PN 25
    Medium temperature -50...200 °C
    Ambient temperature -40...85 °C
    Storage temperature -25...70 °C
    Degree of protection according to EN 60529 IP65
    Approvals
    DNV
