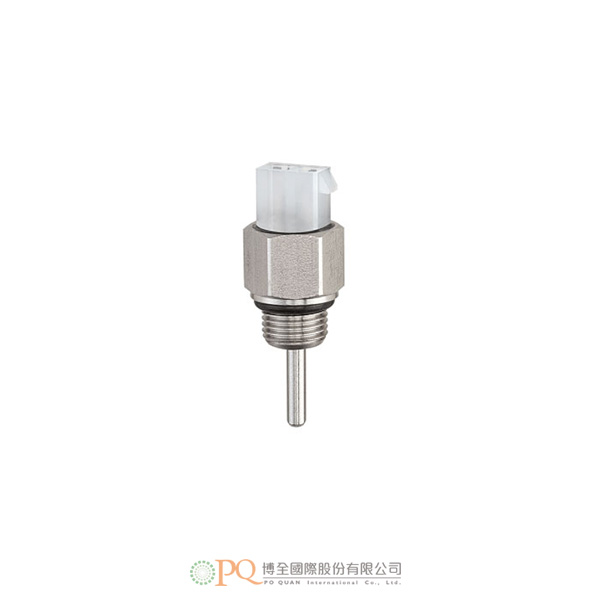

Temperature sensors / HVAC version with with connector

型號:Type WFI
  • Cost-efficient electrical connection due to Mini-Fit plug
  • Efficient control thanks to very short response times
  • Application-specific installation lengths and screw-in threads possible
  • High reliability due to special interior structure
  • Measured values reproducible for years due to very low long-term drift
  • The application areas for temperature sensors are very individual and the conditions are often harsh. Different requirements have to be taken into account during realisation:

    • special installation situations
    • special environmental conditions
    • vibration resistance
    • short response times
    • long service lives

    Your advantage: our experienced design staff know and observe the required demands. This leads to reliable and targeted problem solution.

    Our products convince through durability, robustness and precision. In order to meet all quality requirements, SIKA develops and produces exclusively in Germany. This guarantees easy co-engineering between us and our customers, high-quality branded goods and on-time delivery.

  • Technical data
    Type Temperature sensor with Mini-Fit plug
    Measuring range -40…125 °C
    Measuring medium Water and aqueous liquids, non-aggressive gases
    Immersion tube length 15 mm or 19.5 mm
    Immersion tube diameter 3.2 mm
    Process connection G⅛
    Nominal pressure PN 25
    Medium temperature -40...125 °C
    Ambient temperature -40...105 °C
    Storage temperature -25...70 °C
    Degree of protection according to EN 60529 IP30
