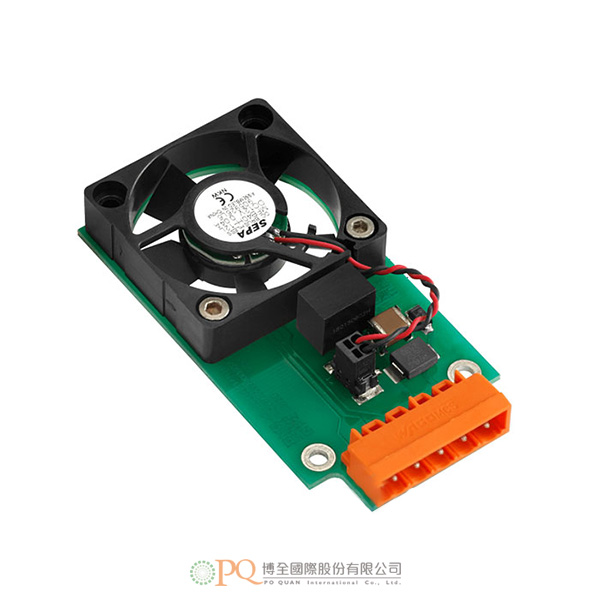

Temperature sensors / HVAC version with with connector

型號:Type WTA
  • For room temperature measurement in vehicles
  • Actively ventilated sensor elements. Makes concealed rear wall mounting possible with simultaneous short response time
  • Two integrated sensor elements. Cost savings due to a reduction in the number of versions
  • Super-silent fan. Passenger is not disturbed by fan noise
  • Very high vibration resistance. Reliable and long-lasting operation
  • Type-tested according to DIN EN 50155
  • The sensor is intended for measuring media in heating and air conditioning systems as well as cooling circuits of machines and plants

    different requirements were taken into account during the realization:

    • short response time. Perfect for controlling rapidly changing process parameters
    • very high vibration resistance. Reliable and long-lasting operation
    • low wiring effort. Also available with digital 1-wire bus interface
    • the application areas for temperature sensors are very individual and the conditions are often harsh.

    Our experienced design staff know and observe the required demands. This leads to reliable and targeted problem solution.

    Our products convince through durability, robustness and precision. In order to meet all quality requirements, SIKA develops and produces exclusively in Germany. This guarantees easy co-engineering between us and our customers, high-quality branded goods and on-time delivery.

  • Technical data
    Type Modular room temperature sensor for rear wall mounting, actively ventilated
    Measuring range -40…85 °C
    Measuring medium Ambient air (non-aggressive gases)
    Dimensions [mm] 81.5 x 42 x approx. 11.6 (W x H x D)
    Process connection Drill holes 4 mm
    (optionally with customer-specific
    mounting plates)
    Nominal pressure n.a. (atmospheric pressure)
    Medium temperature -40…85 °C
    Ambient temperature -40...85 °C
    Storage temperature -25...70 °C
    Degree of protection according to EN 60529 IP10
