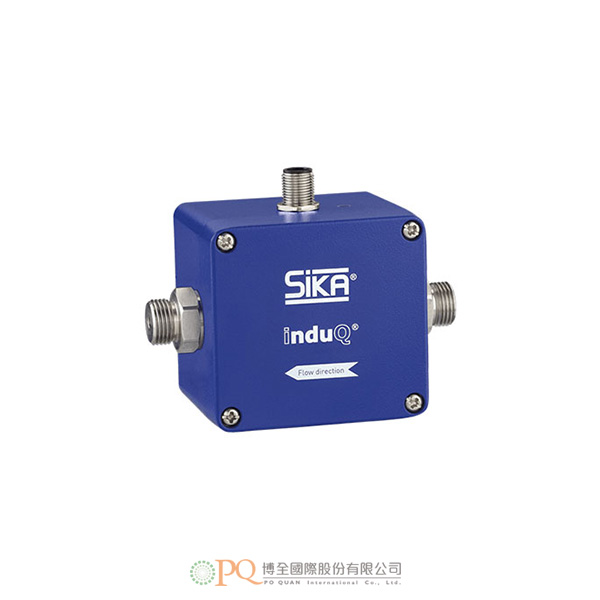

Magnetic inductive flow sensors with threaded connection / Metal version

型號:Type induQ VMI
  • Robust metal housing for high temperatures and pressures
  • wide measuring range 1:60 (1:50) and very good measuring accuracy
  • frequency or analogue and frequency output
  • supplied with SIKA works calibration certificate
  • The sensors of the induQ® VMI series allow a flow- / volumetric flow measurement of electrically conductive liquids without moving parts. These are the ideal flow sensors when it comes to accuracy and reliability.

    The SIKA VMI 07 is used, among other things, for cooling processes in machine and plant construction or in building technology.

    The intelligent flow sensors of the induQ® series operate according to the induction principle: the measuring pipe is surrounded by a magnetic field (B). If an electrically conductive medium with the flow rate to be determined (Q) flows through the measuring pipe and thus enters the magnetic field at a right angle, a charge (U) is induced into the medium which is proportionate to the mean flow velocity and tapped by two electrodes. For an output signal which is proportionate to the flow rate, there are two versions available:

    • frequency output signal (standard)
    • analogue and frequency output signal (option)

    The pulse rate can be configured at the factory depending on the type.

  • Type VMI02 VMI07 VMI10 VMI20
    Characteristics
    Nominal diameter DN 2 DN 7 DN 10 DN 20
    Nominal pipe size ⅛“ ¼“ ⅜“ ¾“
    Process connection G¼-ISO 228 male G½-ISO 228 male

    G½-ISO 228 male or
    G¾ -ISO 228 male

    G 1-ISO 228 male
    Process connection ¼“ NPT male 1½“ NPT male ½“ NPT male or
    ¾“ NPT male
    1“ NPT male
    Inner diameter [mm] 2 4 x 10 10 20
    Inner diameter [inch] 0.08 0.4 x 0.16 0.4 0.79
    Flow range [l/min] 0.0083...1 or 0.05...2 0.1…30 0.2…60 5...250
    Flow range [US gpm] 0.0022...0.26 or 0.0133...0.53 0.027...8 0.053...16 1.3...66
    Accuracy* 0...50 % of range: ±1 % of range
    50…100 % of range: ±2 % of range
    ± (0.7 % of reading + 0.3 % of range) ±(1.5 % of reading + 0.3% of range)
    Repeatability* 1 %
    Response time <500 ms
    Medium Water and other conductive liquids
    min. conductivity of medium 50 μS/cm
    Medium temperature -20...90 °C
    Medium temperature -4...194 °F
    Ambient temperature Min. -10 °C, max. see figure temperature limits
    Pressure rating PN 16
    Pressure rating Max. 232 psi
    Flow indication LED green, flow proportional flashing
    Degree of protection EN 60529 IP65 and IP67 (with attached cable socket)
    Electrical data
    Electrical connection Plug connector M12 x 1
    Power supply 12...24 VDC (±10 %) 24 VDC (±10 %)
    Current consumption ≤ 150 mA
    Approva
    For VMI02/07/10 EU RO Mutual Recognition Type Approval Certificate
    (covers: ABS, BV, CCS, CRS, DNV, IRS, KR, LR, ClassNK, PRS, RINA, RS)


    * Test conditions: Water 23 °C / 73 °F at 150 ±100 μS/cm; standard pulse rate
