Magnetic inductive flow sensors with flange connection / Metal version

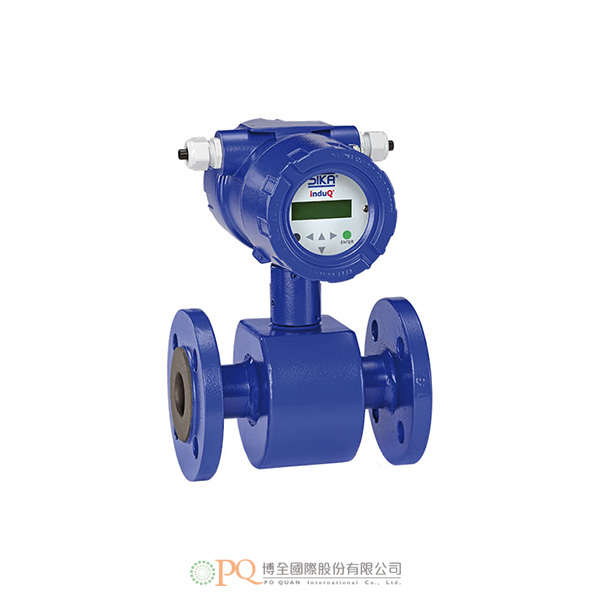

型號：Type induQ VMM

Magnetic inductive flow sensor for large nominal diameters DN15...200
no mechanical wear
robust industrial design
simple menu-driven operation / programming via display
supplied with SIKA works calibration certificate

加入洽詢

產品特點產品規格

The magnetic inductive flow sensors induQ® of the VMM series are very precise measuring devices for electrically conductive liquids. Due to their robust design, they are also suitable for harsher ambient conditions.

The magnetic inductive flow sensors of the VMM series from SIKA are used in the following areas, among others:
- water and waste water
- mining, cement and minerals
- pulp and paper industry
- steel industry
- energy industry and utilities
- agriculture
The intelligent flow sensors of the induQ® series work according to the induction principle: the measuring pipe is surrounded by a magnetic field (B). If an electrically conductive medium with the flow rate to be determined (Q) flows through the measuring pipe and thus enters the magnetic field at a right angle, a charge (U) is induced into the medium which is proportionate to the mean flow velocity and tapped by two electrodes. For an output signal which is proportionate to the flow rate, there are two versions available:
- frequency output signal
- analogue and frequency output signal
The pulse rate can be configured at the factory depending on the type.

Type	VMM15	VMM25	VMM32	VMM40	VMM50	VMM65	VMM80	VMM100	VMM125	VMM150	VMM200
Characteristics
Nominal diameter	DN 15	DN 25	DN 32	DN 40	DN 50	DN 65	DN 80	DN 100	DN 125	DN 150	DN 200
Process connection	Flange connection in accordance with EN 1092-1, JIS B2220 10K or ANSI B16.5
Inner diameter →Hard rubber →PTFE	14.0 14.0	27.0 27.0	33.3 33.3	38.0 38.0	48.5 48.5	64.3 63.3	76.9 75.9	102.5 102.5	127.7 124.7	156.3 152.3	205.1 201.1
Flow range →Flow velocity [m/s]	0...10
→Volumetric flow [m³/h]	0...6.3	0...17.6	0...28.9	0...45.2	0...70.6	0...119.4	0...180.9	0...282.7	0...441.7	0...636.1	0...1130
Accuracy* v = 1...10 m/s v < 1 m/s additionally Frequency output Analogue output	±0.5 % of reading ±0.4 % of reading ±1 mm/s ±0.05 % per 10 K ±0.1 % per 10 K
Repeatability	±0.15 %
Response time	< 100 ms (Depending on the electronics settings)
Signal output starting from	> 0 m/s
Medium	Water and other conductive liquids
Min. conductivity of medium	20 µS/cm
Medium temperature →Hard rubber →PTFE →Process connections →Process connections	0...90 °C -20...100 °C at 40 bar -20...130 °C at 25 bar -20...180 °C at 16 bar (only for separate version) Min. -10 °C (steel) Min. -20 °C (stainless steel)
Ambient temperature →Hard rubber →PTFE →Process connections →Process connections →Display	0...80 °C -20...100 °C Min. -10 °C (steel) Min. -20 °C (stainless steel) -20...50 °C (The readability of the LCD display is restricted below 0 °C)
Storage and transport temperature	-20...60 °C
Pressure rating →EN1092-1 →JIS B2220 10K →ANSI B16.5 150 RF PN 40 PN 40 PN 40	PN 40	PN 40	PN 40	PN 40	PN 40	PN 16** PN 40	PN 16 PN 40	PN 16 PN 40	PN 16 PN 40	PN 16 PN 40	PN 10 PN 16 PN 25 PN 40
	9.8 bar 19.6 bar (Process connection, steel) 15.9 bar (Process connection, stainless steel)
Display	LCD two-line, backlight
Operation	6 keys, menu-driven
Degree of protection EN 60529	IP67

* Reference conditions: Media temperature 10...30 °C; Ambient temperature 20...30 °C; warm-up period 30 min.; straight pipe lengths; inlet 5 x DN, outlet 2 x DN, regularly centered and earthed

** 8 bolt flanges
