Magnetic inductive flow sensors with threaded connection / Plastic version

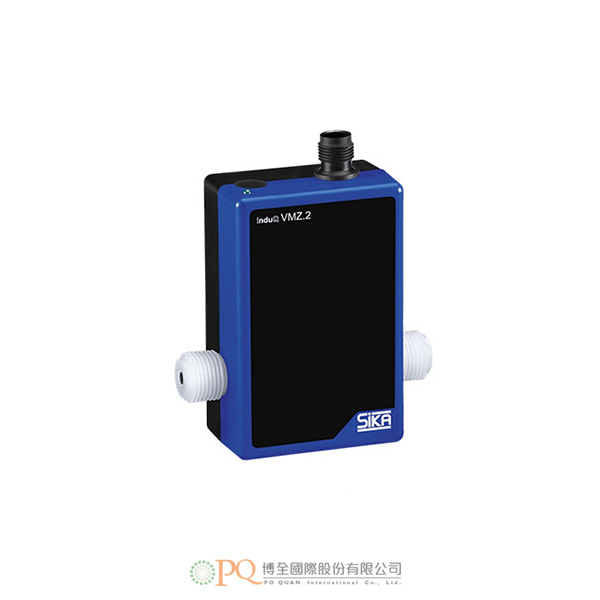

型號：Type induQ VMZ.2

Cost-optimized plastic design
compact lightweight construction
especially for series applications
best price-performance ratio

加入洽詢

產品特點產品規格

The sensors of the induQ® VMZ.2 series allow a flow- / volumetric flow measurement or dosing of electrically conductive liquids without moving parts. These are the ideal flow sensors when it comes to accuracy and reliability.

The areas of application include:
- machine and plant construction
- cleaning processes
- mobile applications
The intelligent flow sensors of the induQ® series work according to the induction principle: the measuring pipe is surrounded by a magnetic field (B). If an electrically conductive medium with the flow rate to be determined (Q) flows through the measuring pipe and thus enters the magnetic field at a right angle, a charge (U) is induced into the medium which is proportionate to the mean flow velocity and tapped by two electrodes. For an output signal which is proportional to the flow rate, the following version is available:
- frequency output signal
The pulse rate can be configured at the factory depending on the type.

For an analogue output signal, the following versions are available:
- analogue output 4...20 mA and frequency output
- analogue output 0.5...10 V and frequency output

Type	VMZ03	VMZ06	VMZ08	VMZ15	VMZ20	VMZ25
Technical data
Nominal diameter	DN 3	DN 6	DN 8	DN 15	DN 20	DN 25
Nominal pipe size	1/16"	¼"	¼"	½"	¾"	1"
Process connection [male thread]	G⅜	G½	G½	G¾	G 1	G 1¼
Process connection [male thread]	⅜" NPT	½" NPT	½" NPT	¾" NPT	1" NPT	1 ¼" NPT
Inner diameter [mm]	3	6	8	14	18	25
Inner diameter [inch]	0.118	0.31	0.31	0.55	0.71	0.98
Flow range [l/min]	0.1...2	0.25...5	1...20	2.5...50	5...200	12.5...250
Flow range [US gpm]	0.026...0.53	0.066...1.3	0.26...5.3	0.66...13.2	1.3...53	3.3...66
Accuracy*	±0.7 % of reading ±0.3 % of range
Repeatability	±1 %
Response time	<100 ms
Signal output starting from [l/min]	0.05	0.1	0.25	1	4	5
Signal output starting from [US gpm]	0.013	0.026	0.07	0.27	1.06	1.32
Max. Flow rate [l/min]	2.5	6	25	60	240	300
Max. Flow rate [US gpm]	0.66	1.58	6.6	15.8	63.4	79.2
Medium / min. conductivity of medium	Water and other conductive liquids / 20 µS/cm
Medium temperature →Measuring pipe PVDF → Measuring pipe POM	-15...80 °C (non-freezing) -15...60 °C (non-freezing)
Medium temperature →Measuring pipe PVDF → Measuring pipe POM	5...176 °F (non-freezing) 5...140 °F (non-freezing)
Ambient temperature	-15...60 °C
Ambient temperature	5...140 °F
Storage temperature	-15...60 °C
Storage temperature	5...140 °F
Max. pressure rating	10 bar at 20 °C, 8 bar at 40 °C, 6 bar at 60 °C, 5 bar at 80 °C
Max. pressure rating	145 psi at 68 °F, 116 psi at 104 °F, 87 psi at 140 °F, 73 psi at 176 °F
Indications	LED green, flow proportional flashing
Degree of protection EN 60529	IP65 (with attached cable socket)
Electrical data
Electrical connection	4 pin plug connector M12 x 1
Power supply	12...24 VDC (±10 %) (With analog output 0.5...10 V: 16...24 VDC (±10 %))
Power consumption	Typical 1.1 W, max. 3.6 W
Electrical protection measures	Short-circuit proof and polarity protection

* Test conditions: Ex works, water 23 °C (73 °F)
