SFP 火焰光度計

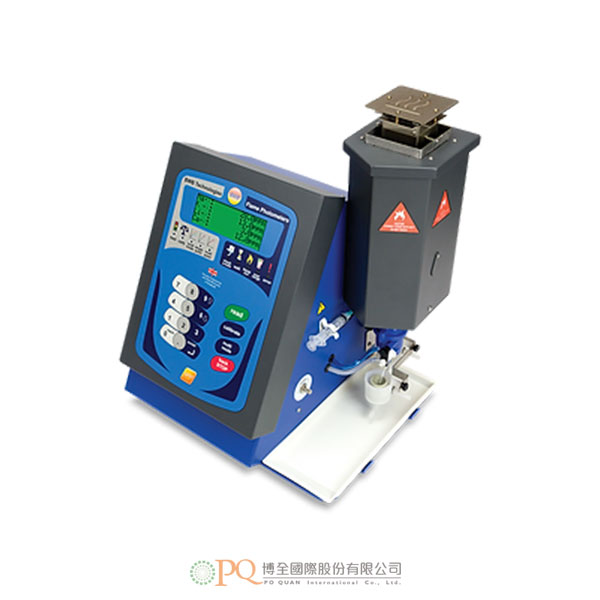

SFP Flame Photometer 型號：SFP-
BWB的火焰光度計不斷在低溫火焰領域突破規則的限制，我們的產品開發計畫從第一天起就根據客戶的需求作啟發。我們與許多商業和學術組織建立了牢固的互利合作夥伴關係，這些組織面臨著特定的挑戰，都藉由 BWB 特殊火焰光度計得到完美的解決方案。
目前，我們正在著手測量 Na、K、Li、Ca、Cs 和 Ba，這些偵測器的組合式根據使用者與 BWB 工程師合作，開發出滿足其特定需求的理想儀器。
一個典型的例子是一家全球超高純度鋰錠供應商，該供應商運營熱蒸汽發電設施，並使用奇特的過濾方法來提取Li和其他檢測到的離子。我們的混合客製化 BWB 火焰光度計使他們能夠透過我們易於使用且功能異常強大的儀器來增強其昂貴且奇特的 ICP 和 AAS 儀器。
立即聯繫，了解 BWB 如何與您合作開發適合您需求的 BWB 特殊火焰光度計。
產品特點:
- 專門配置以滿足您的需求。
- 可用“IRS”（內部參考標準）。
- 我們的非傳統第五個「測量單位」允許單位的真正創新，透過我們的 FP-PC 耦合到網路或內部網路來顯示和連結。
- 同時偵測並顯示所有 5 種元素分析的任意組合。
- 與 BWB AFHS 自動流體處理系統相容。
- 直覺的使用者介面真正易於使用。
- 顯示提示引導操作。
- 內建空氣壓縮機。
- 含括基本使用實驗室器具。
- 透過與PC連結進行資料共享。
- 操作員獨立確定結果。
- 使用者可選4 個基礎測量單位以及而外第5個可選測量單位。
- 使用者可選擇小數位。
- 整合式印表機使用任何商業街辦公用品公司提供的現成紙張。
- 校正 Ca 以消除高濃度 Na 的干擾。
-
Sample rate
2 – 3.5ml/min
Tubing materials
Silicone and Tygon®
or as specifiedSpecificity
Na/K/Li = <1% to each other when
equal in concentration at <100ppmRequired desk space for Instrument
50cm (H) x 45cm (W) x45cm (D)
For Safety reasons the Flame photometer requires 1m of
unobstructed space above to allow dissipation of
heat from the chimney.Instrument size
SFP Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)Shipping
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)Weight
SFP Flame Photometer – 14kg (30.8lbs)
Shipping – 25kg (55.1lbs)
Power requirements
100V – 250V AC at 50 or 60Hz automatically selecting
Readout
LCD, four line, alpha numeric, back lit.
Optimal range
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Li 0.05 – 50ppm
Ca 1.0 – 100ppm
Ba 5 – 100ppm
Cs 0.14 – 100ppmMulti Point Calibration
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
Li 0.05 – 1000ppm
Ca 1.0 – 1000ppm
Ba 5.0 – 3000ppm
Cs 0.5 – 1000ppmReproducibility
<1% Coefficient of variability for 20 consecutive samples
over ten minutes at concentrations of 100ppm or less.
(After instrument stabilisation).Limit of detection (LOD) and
limit of quantification (LOQ) displayedLOD LOQ
Na – 0.03ppm Na – 0.1ppm
K – 0.02ppm K – 0.05ppm
LOD LOQpm
Ca – 0.3ppm Ca – 1ppm
Ba – 1.6ppm Ba – 5.0ppm
Cs – 0.041ppm Cs – 0.14ppmIons measured
Customisable measurement of Na, K, Li, Ca, Ba and Cs
Interfaces
USB
0-2.5 volt output
(based on sample concentration linked to element of users choice)Optional 4-20mA output in place of the above
Optional integrated printer
.CSV and .PDF generated reports and files via FP-PC software
Optional collection cup to provide live readings
Recommended minimum warm up
time based on ambient temperature21°C – 25 minutes
Fuel requirement
Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min
*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
Other Options
Left hand or right hand chimney configuration.
Customized calibration curves for
any or all of the atoms of interest.Customized calibration solutions for multiple points
(up to 14) for both in factory pre-shipment calibration and after sales supply.User selectable units of measure including client
determined unique units of measure. -
- Specially configured to suit your needs
- “IRS” (Internal Reference Standard) available
- Our non traditional 5th “Unit of Measure” allows the true innovation of units to display and link outbound via our FP-PC coupling to the inter or intra-net
- Simultaneous detection and display of any combination of all 5 atoms of interest
- Compatible with BWB AFHS
- Intuitive user interface for true ease of use
- Display prompts step by step operation
- Built-in air compressor
- Solutions and labware included
- Data sharing via PC link
- Operator independent determination of results
- 4 user selectable units of measure with a fifth optional unit of measure
- User selectable decimal places
- Integrated printer uses readily available paper from any high street office supply company
- Correction of Ca for the interference from high levels of Na
-
Sample rate
2 – 3.5ml/min
Tubing materials
Silicone and Tygon®
or as specifiedSpecificity
Na/K/Li = <1% to each other when
equal in concentration at <100ppmRequired desk space for Instrument
50cm (H) x 45cm (W) x45cm (D)
For Safety reasons the Flame photometer requires 1m of
unobstructed space above to allow dissipation of
heat from the chimney.Instrument size
SFP Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)Shipping
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)Weight
SFP Flame Photometer – 14kg (30.8lbs)
Shipping – 25kg (55.1lbs)
Power requirements
100V – 250V AC at 50 or 60Hz automatically selecting
Readout
LCD, four line, alpha numeric, back lit.
Optimal range
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Li 0.05 – 50ppm
Ca 1.0 – 100ppm
Ba 5 – 100ppm
Cs 0.14 – 100ppmMulti Point Calibration
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
Li 0.05 – 1000ppm
Ca 1.0 – 1000ppm
Ba 5.0 – 3000ppm
Cs 0.5 – 1000ppmReproducibility
<1% Coefficient of variability for 20 consecutive samples
over ten minutes at concentrations of 100ppm or less.
(After instrument stabilisation).Limit of detection (LOD) and
limit of quantification (LOQ) displayedLOD LOQ
Na – 0.03ppm Na – 0.1ppm
K – 0.02ppm K – 0.05ppm
LOD LOQpm
Ca – 0.3ppm Ca – 1ppm
Ba – 1.6ppm Ba – 5.0ppm
Cs – 0.041ppm Cs – 0.14ppmIons measured
Customisable measurement of Na, K, Li, Ca, Ba and Cs
Interfaces
USB
0-2.5 volt output
(based on sample concentration linked to element of users choice)Optional 4-20mA output in place of the above
Optional integrated printer
.CSV and .PDF generated reports and files via FP-PC software
Optional collection cup to provide live readings
Recommended minimum warm up
time based on ambient temperature21°C – 25 minutes
Fuel requirement
Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min
*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
Other Options
Left hand or right hand chimney configuration.
Customized calibration curves for
any or all of the atoms of interest.Customized calibration solutions for multiple points
(up to 14) for both in factory pre-shipment calibration and after sales supply.User selectable units of measure including client
determined unique units of measure.
