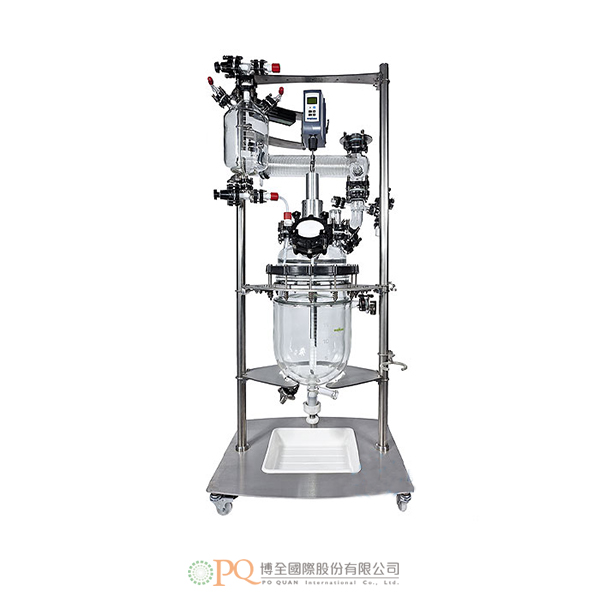

100 L PLUS PILOT Reactor

Asyn可以提供一個整合到獨特的露天自動中心框架中完整的反應器系統，該系統提供各種配件和訂製，以滿足您的公斤級實驗室需求。
提供ATEX版本。

100 L PLUS PILOT 包括：
n°1可拆卸夾套容器DN450/400 100L，排放DN50
n°1玻璃/PTFE閥DN50，沒有無效體積
n°1蓋DN300 7個噴嘴，帶有：
– 用於中心攪拌的DN25，
– 用於固體的DN80 PTFE噴嘴，
– DN40 帶用於PT100的玻璃溫度計袋，
– DN40 帶PH用井，
– DN40 無噴嘴
– DN25 帶浸管和液體轉接器，
– DN50 用於蒸汽
n°1硼矽酸鹽玻璃3.3減少彎曲DN100/50
n°1回流分離器DN100
n° 1 PT100玻璃溫度計袋
n°1玻璃彎管90° DN15
n°2 5L分級進料和接收容器
n°1水平盤管換熱器 1,5MQ INC5° DN80
n°1爆破盤 石墨/PFA DN50
n°1高扭矩-高速頂置式攪拌器
A帶機械密封的主軸馬達
B指示燈 石墨/PTFE
C不銹鋼攪拌軸/PTFE塗層
n°1反應器用不銹鋼框架，帶蓋 DN300

Asynt can offer a complete reactor system incorporated into a unique open air, auto-centre framework with a wide range of accessories and customisation available to suit your kilo lab needs.
ATEX version available.

The 100 L PLUS PILOT includes:

n°1 DISMOUNTABLE JACKETED VESSEL DN450/400 100L, DISCHARGE DN50
n°1 GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME
n°1 COVER DN300 7 NOZZLES WITH:
– CENTRAL DN25 FOR STIRRING,
– DN80 PTFE NOZZLE FOR SOLIDS,
– DN40 WITH GLASS THERMOMETER POCKET FOR PT100,
– DN40 WITH WELL FOR PH,
– DN40 FREE NOZZLE
– DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS,
– DN50 FOR VAPOURS
n°1 BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50
n°1 REFLUX SEPARATOR DN100
n°1 GLASS THERMOMETER POCKET FOR PT100
n°1 GLASS BEND 90° DN15
n°2 5L GRADUATED FEED AND RECEIVING VESSEL
n°1 HORIZONTAL COIL HEAT EXCHANGER 1,5MQ INC5° DN80
n°1 RUPTURE DISK GRAPHITE/PFA DN50
n°1 HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER
A SPINDLE MOTOR
B LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE
C STAINLESS STEEL STIRRING SHAFT/PTFE COATED
n°1 STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN300
