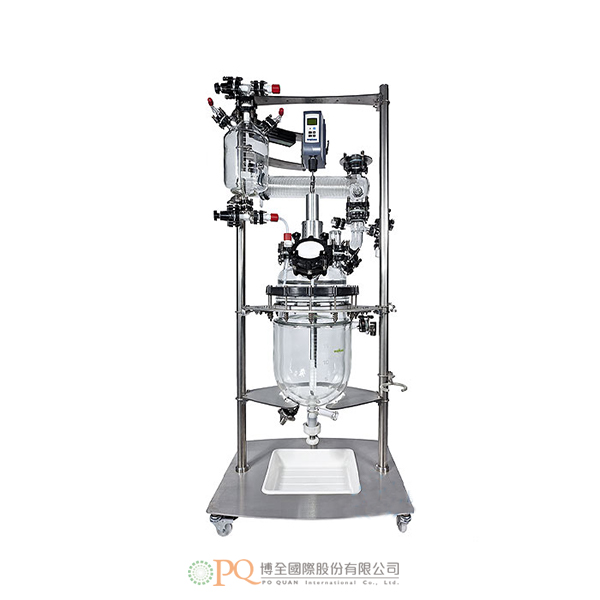

60 L PLUS PILOT Reactor

Asynt可以提供一個整合到獨特的露天自動中心框架中完整的反應器系統，提供各種配件和訂製，以滿足您的公斤級實驗室需求。

60 L PLUS PILOT 包括：
可拆卸夾套容器 DN450/400 60L 排放 DN50
玻璃/PTFE 閥門 DN50 沒有怠體積
蓋 DN300 7 個噴嘴，帶有：
– 用於攪拌的中心 DN25
– 用於固體的 DN80 PTFE 噴嘴
– DN40用於PT100，帶玻璃溫度計袋
– DN40 用於PH
– DN40 自由噴嘴
– DN25 帶浸管和液體轉接器
– DN50 用於蒸汽
酸鹽玻璃 3.3 減少彎頭 DN100/50回流分離器DN100
用於PT100的玻璃溫度計口袋，
玻璃彎頭 90° DN15
n° 2 5L 升級容器
臥式盤管換熱器 1.5MQ DN80
爆破片 石墨/PFA DN50
高扭矩-高速頂置攪拌器
A 主軸馬達
B 帶機械密封的指示燈 石墨/PTFE
C 不銹鋼攪拌軸/PTFE 塗層
用於帶蓋 DN300的反應的不銹鋼框架

Asynt can offer a complete reactor system incorporated into a unique open air, auto-centre framework with a wide range of accessories and customisation available to suit your kilo lab needs.


The 60 L PLUS PILOT includes:

DISMOUNTABLE JACKETED VESSEL DN450/400 60L DISCHARGE DN50
GLASS/PTFE VALVE DN50 WITH NO DEAD VOLUME
COVER DN300 7 NOZZLES WITH:
– CENTRAL DN25 FOR STIRRING,
– DN80 PTFE NOZZLE FOR SOLIDS,
– DN40 WITH GLASS THERMOMETER POCKET FOR PT100,
– DN40 WITH WELL FOR PH,
– DN40 FREE NOZZLE
– DN25 WITH DIP PIPE AND ADAPTER FOR LIQUIDS,
– DN50 FOR VAPOURS
BOROSILICATE GLASS 3.3 REDUCED BEND DN100/50
REFLUX SEPARATOR DN100
GLASS THERMOMETER POCKET FOR PT100
GLASS BEND 90° DN15
n° 2 5L GRADUATED FEED AND RECEIVING VESSEL
HORIZONTAL COIL HEAT EXCHANGER 1.5MQ DN80
RUPTURE DISK GRAPHITE/PFA DN50
HIGH TORQUE-HIGH SPEED OVERHEAD STIRRER
A SPINDLE MOTOR
B LANTERN WITH MECHANICAL SEAL GRAPHITE/PTFE
C STAINLESS STEEL STIRRING SHAFT/PTFE COATED
STAINLESS STEEL FRAME FOR REACTOR WITH COVER DN300
