液體和氣體測定含水量儀 ( 基礎款 )

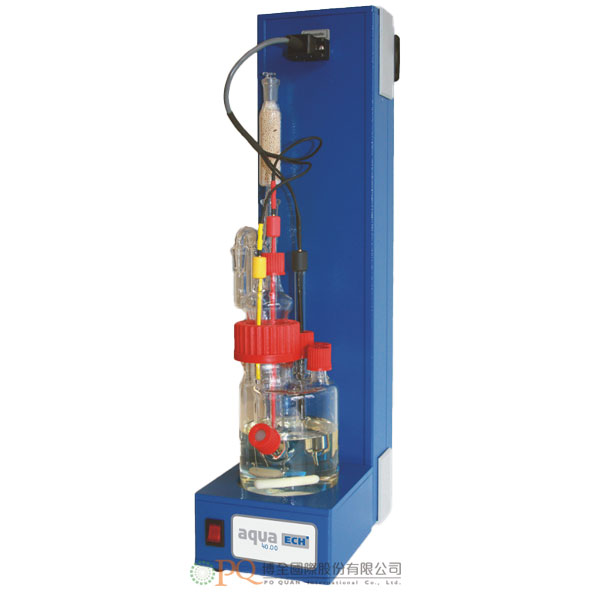

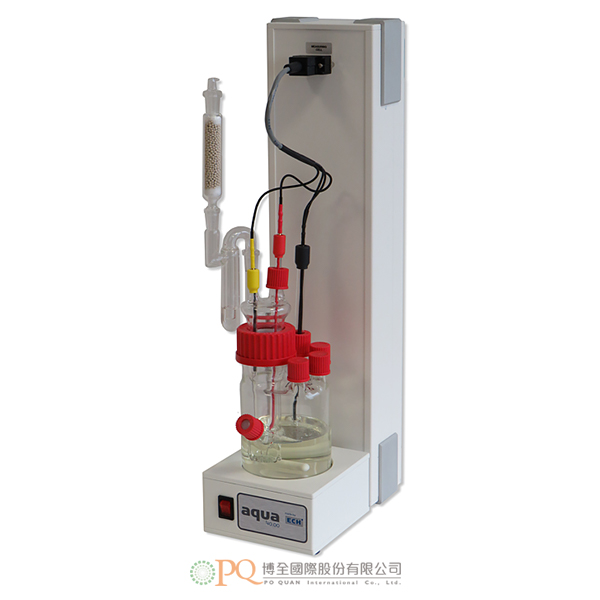

AQUA 40.00 Basic Module 型號:AQUA 40.00 Basic Module
測定液體樣品和氣體的水含量。
  • Water content of liquid samples and gases

    The AQUA 40.00 Basic Module is the essential device for microcoulometric determination of water content according to Karl-Fischer-Titration in liquid samples and gases.

    This coulometric titration is based on the electrochemical generation of the iodine needed for the determination. There is no need for any working with titer of KF-reagent and their adjustment.

    The optimized measuring cell allows very low background drift and short preconditioning times.

    Therefore the coulometric method can be used as a down to trace ppm-analysis. The sample to be analyzed is injected right into the measuring cell. The titration current is adjusted automatically and continuously to the amount of water. Short measuring times are realized.

    Measuring cells without diaphragm can be used. Many applications do not require a diaphragm, so only one coulometric reagent is needed. All customary KF-reagents are suitable.

    The basic module can be upgraded with additional modules for different sample types.

    Applications

    • Solvents
    • Oils and fats
    • Fuels, biodiesel
    • Hydraulic and brake fluids
    • Gases

    Advantages

    • Infinitely variable electrolysis current for very fast analysis
    • Adjustment of titration rate to current amount of water to be titrated
    • Low background drift
    • All customary KF-reagents are suitable
    • Easy-to-use software
    • Defined methods for measurement
    • Status display through large-scale colouration
    • Additonal heating modules can be used
  • Measuring range: 1 µg – 100 mg, absolute
    Resolution: 0.1 μg
    Reproducibility: ± 3 µg for 10…1000 µg 3 % for > 1 mg
    Generator current: infinitely variable from 0 up to 250 mA
    Sample volume: 0.01 – 20 ml (direct injection)
    Volume of reagent in measuring cell: 100 ml
    Analysis duration: 5 min (dependent on water content)
    Results in: μg, μg/l, mg/l, ppm, %, mC, customized with formula generator
    Indication: biamperometrical, polarization with square-wave voltage
    Power supply: 115 or 230 V, 50 – 60 Hz
    Interface: RS 232
    Balance connection: RS 232
    Dimensions: RS 100 x 400 x 200 mm (W X H x D)
    Weight: 5 kg
