B24 Luer vacuum adapters

化學家可以使用這些簡潔的小轉接頭將它們的反應直接處理到圓底燒瓶中，不需要使用布氏漏斗並將其倒入單獨的燒瓶中進行蒸發，從而加快過程並避免溢出。
也非常適用於簡單的色譜和SPE，使用任何Luer安裝的小柱或註射器筒時，通過對側臂施加真空，就可以在不需要多個餾分的情況下實現簡單的分離，對於那些使用離子交換技術的化學家來說，這是一種高效、簡單的解決方案。
Asynt Luer轉接頭也可用於液體傳輸。

將轉接頭放在反應瓶上，連接 2 ft Luer鎖針，將針頭連接到您選擇的試劑中，打開真空管並觀察液體試劑安全轉移到燒瓶中的所需體積，然後切換真空管到氮氣來使您的反應惰性化。
一系列流行的 Luer 接頭設計可供選擇， 現在可選擇 PTFE 螺紋接頭和隔離水龍頭，可實現簡單、安全的 SPE、後處理、塞柱和過濾直接進入圓底燒瓶......
零件號：
GB-100：標準 B24 Luer接頭（主圖）
GB-101：帶螺紋側臂的 B24 Luer接頭
GB-105：帶側臂和開孔隔離閥的 B24 Luer接頭
GB-106：帶側臂的B24 Luer接頭隔離閥

Using these neat little adapters, the chemist can process their reactions straight into a round bottomed flask thus removing the need for a Buchner funnel and decanting into a separate flask for evaporation, speeding up the process and avoiding spillages.

Also highly suited for simple chromatography and SPE using any Luer fitted cartridge or syringe barrel by applying a vacuum to the side arm, simple separations can be achieved where multiple fractions aren’t needed, a highly effective, simple solution, particularly suited to those chemists using ion exchange techniques.

The Asynt Luer adapter is also useful for transfer of liquids.

Place the adapter on your reaction flask, connect a 2 ft Luer lock needle, connect the needle into your reagent of choice, turn on the vacuum line and watch the safe transfer of your liquid reagent into your flask to the required volume, then switch the vacuum line back to nitrogen to inert your reaction and away you go.

A range of designs of the popular Luer adapters available, now with the options of PTFE screw on fittings and an isolation tap, enables easy, safe SPE, work ups, plug columns and filtrations directly into the round bottom flask…..

Part Numbers:

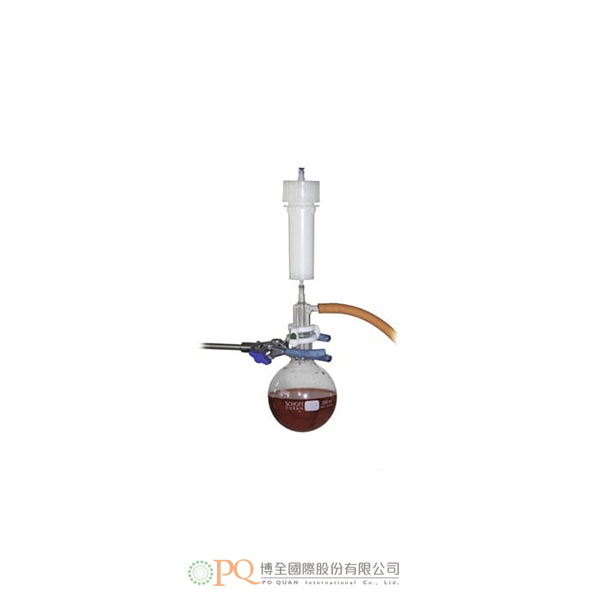

GB-100:  Standard B24 luer adapter (main image)
GB-101:  B24 luer adapter with screw thread side arms
GB-105:  B24 luer adapter with side arm, and with open bore isolation valve
GB-106:  B24 luer adapter with side arm isolation valve
