CRYOSTATIC BATH

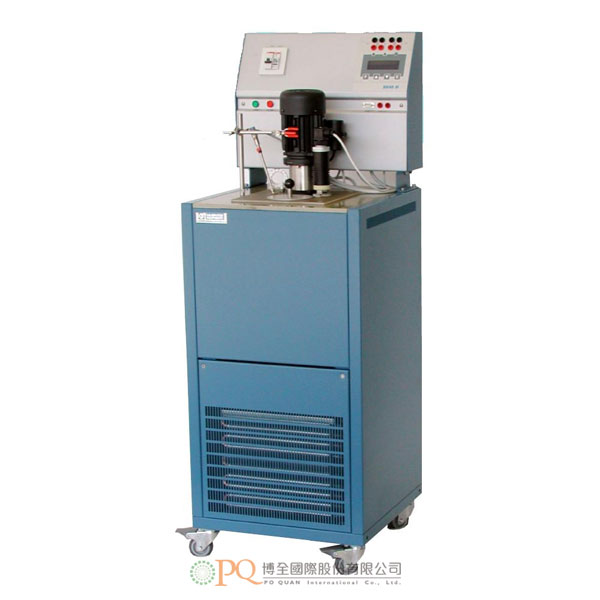

CRYOSTATIC BATH 型號:BK40 M-TR
  • Temperature range: -40 °C ÷ 125 °C
  • Stability: ±0,01 °C
    • Accuracy: ±0,20 @ 120 °C
    • Well depth: 330 mm
    • Working diameter: 75 mm
  • Product name BK40 M BK40 M‐TR (5) TB300 M TB300 M‐TR (5)
    Temp. range (°C) ‐40 (*) ÷ 125 (2) ‐40 (*) ÷ 125 (2) 50 ÷ 260 (3)(4) 50 ÷ 260 (3)(4)
    Type Liquid Liquid Liquid Liquid
    Stability (°C) ±0,05 (1) ±0,01 (2) ±0,05 (3) ±0,01 (3)
    Uniformity Radial (°C)
    Axial (°C)
    @ 60 °C (1)
    ±0,02 (@ 100 mm)
    ±0,02 (@ 120 mm)
    @ 80 °C (2)
    ±0,01 (@ 100 mm)
    ±0,01 (@ 120 mm)
    @ 120 °C (3)
    ±0,02 (@ 100 mm)
    ±0,02 (@ 120 mm)
    @ 200 °C (3)
    ±0,005 (@ 100 mm)
    ±0,005 (@ 120 mm)
    Stability indicator Audio + visual Audio + visual Audio + visual Audio + visual
    Display accuracy (°C) ±0,20 ±0,20 ±0,20 ±0,20
    Display resolution (°C) 0,1 / 0,01 0,1 / 0,01 0,1 / 0,01 0,1 / 0,01
    Ext. probe reading Optional Optional Optional Optional
    Units of measurement °C / °F / K °C / °F / K °C / °F / K °C / °F / K
    Interface RS232 RS232 RS232 RS232
    Mean heating time 2 °C/min (1) 2 °C/min (1) 6 °C/min (3) 6 °C/min (3)
    Mean cooling time 0,5 °C/min (1) 0,5 °C/min (1)  —   —
    Slope  ●  ●  ●  ●
    Switch test  ●  ●  ●  ●
    Well depth (mm) 340 330 340 330
    Working diameter (mm) 105 75 123 75
    Size (mm) 450 x 450 x 1270 450 x 450 x 1270 450 x 450 x 1270 450 x 450 x 1270
    Weight (kg) 70 73 44 47
    Power supply (V) ‐ (50/60 Hz) 230 230 230 230
    Power (W) 2500 2500 1600 1600

    * Ambient temperature: 20 °C

    1. With ethylene glycol
    2. With silicon oil 200C5
    3. With silicon oil 47V100
    4. Maximum range Amb. ÷ 300 °C
    5. With fluid level adapter
