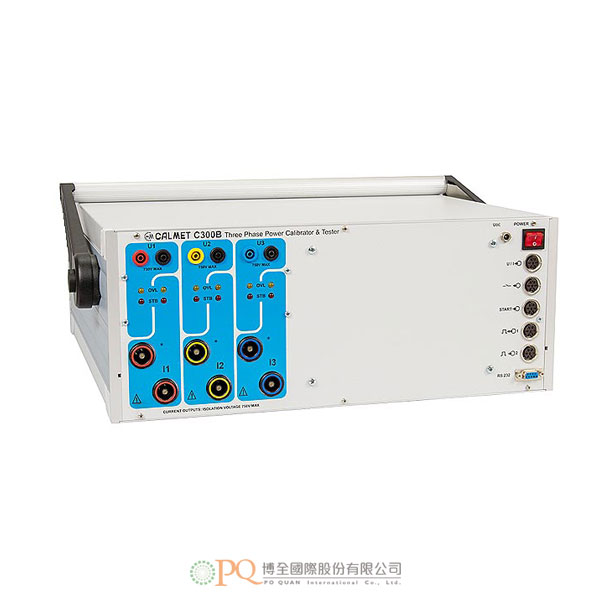

動力工程設備的三相功率校正器和測試儀

Three Phase Power Calibrator and Tester of Power Engineering Devices 型號:C300B

最高120A(360A)和560VAC的三相0.02級和0.05級電能品質校準器。具有可程式設計的電能品質參數來對電錶、測量感測器、電流變壓器和保護繼電器進行自動測試。

    • 最高560V的三相電壓源
    • 三相電流源最高120A,單向電流源最高360A
    • 每個電流輸出的相對電流插座
    • 0.02%或0.05%精度等級的校準數位儀錶
    • 單品提供,無輔助放大器
    • 驅動舊模擬儀器的高輸出負擔
    • 手動模式和自動測試程序
  • Weight

    28kg

    Width x height x depth

    (480x200x451)mm

    Width x height x depth (with feet and handle)

    (480x200x490)mm

    Power supply

    90V…264V / 47...63Hz / 900VA

    • 3-phase voltage source up to 560V
    • 3-phase current source up to 120A and 1-phase up to 360A
    • Single pair of current sockets for each current outputs
    • Accuracy class 0.02% or 0.05% to calibrate digital instruments
    • Single product in a single case without auxiliary amplifiers
    • High burden of outputs to drive older analogue instruments
    • Manual mode and automatic test procedures
  • Weight

    28kg

    Width x height x depth

    (480x200x451)mm

    Width x height x depth (with feet and handle)

    (480x200x490)mm

    Power supply

    90V…264V / 47...63Hz / 900VA
