先進實驗室電氣校正器/雙輸入溫度

• 溫度高達0.005％RDG。
• 電阻高達0.006％RDG和50KΩ範圍。
• 電流：RDG和100 mA範圍高達0.007％+ 24 V迴路電源。
• 電壓：RDG高達0.005％，50 V範圍。
• 頻率：RDG和100 KHz範圍高達0.01％。
• 壓力：外部壓力模組（與壓力泵進行比較校正）。

• 金屬外殼，增強堅固性。
• 電容式觸控面板。
• USB通訊。
• 攜帶握柄。
• 電池和AC主電源供電。

溫度@ 23°C±5°C時的規格和性能
不確定度以讀數百分比（CALYS 1500顯示）+固定值給出。

電阻探針：測量和類比

溫度係數：<10%精度/°C超出參考域電阻探頭測量2,3或4線：自動識別連接線數，螢幕上顯示4線安裝探頭的精度考慮到特殊情況所用溫度感測器的誤差和實施條件允許的測量電流：0.25 mA（測量）或0.1 mA至1 mA（發射）

熱電偶：測量和類比

溫度係數：<5%精度/°C超出參考域精度參考@ 0°C。 使用內部參考結（B雙除外）時，在0°C時額外增加0.2°C的不確定度。 可以通過程式設計冷端定位來選擇（熱電偶B除外）：外部溫度為0°C，內部（儀器端子的溫度補償）或手動輸入。 顯示單位：°C？ F和K.熱電偶：G，D：有關規格，請參閱使用說明書（可根據要求提供）。

壓力規格和性能@ 23°C±5°C

壓力：通過外部數位感測器測量

提供相對壓力，絕對壓力和差壓。 連接器：1/4氣體解析度：0.02%FS精度：-0.05%FS從10到40°C - 0.1%FS從-10到+ 10°C和40到80°C此數字壓力模組ACL433連接到CALYS 1500通過RS485串行電纜連接數字輸入。 所有數據都是數位的。 通過在工廠中固件中實現的多項式校正來對測量值進行補償。

在23°C±5°C的溫度範圍內進行性能和技術規範
直流電流：測量
有無迴路供電

溫度係數：<7%精度/°C超出參考域
迴路電源：24 V±10%HART®相容性：輸入阻抗Rin =280ΩCALYS1500還允許線性或二次信號線性化。
CALYS配置的規格如下：
- 主動模式（+ 24V ON）1被動模式下的儀錶（+24 V OFF）。
- 被動模式（+24 V OFF）1啟動模式下的儀錶（+24 V ON）。

直流電壓：測量

溫度係數：<5%精度/°C超出參考範圍

頻率和計數：測量

溫度係數：<5 ppm /°C超出參考域標度單位：脈衝/分鐘和Hz觸發電位：1 V頻率信號或乾接點測量計數將在規定的時間或無限時間內進行。

電阻：測量

直流電流：發射

溫度係數：<7 ppm /°C超出參考域 。
穩定時間：<5 ms CALYS配置的規格如下：
- 主動模式（+ 24V ON）。
- 被動模式下的儀錶（+24 V OFF）
- 被動模式（+24 V OFF）1電平有效模式（+24 V ON）預程式設計步驟。

直流電壓：發射​

溫度係數：<5 ppm /°C超出參考範圍

頻率和脈衝：發射

溫度係數：<5 ppm /°C超出參考域標度單位：脈衝/分鐘和Hz脈衝發射和乾接點類比最大幅度：20 V可由用戶選擇。

電阻：發射

溫度係數：<5 ppm /°C超出參考域Iext：校正器接收的電流。

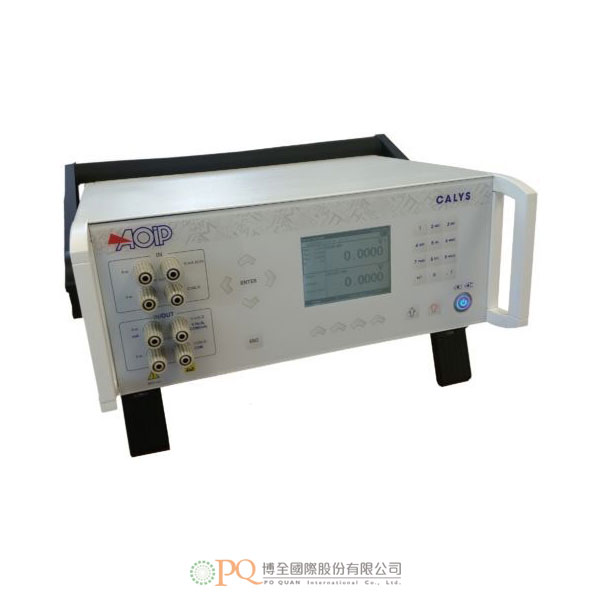

CALYS 1500, most advanced and accurate laboratory electrical calibrator of the range, does not only work as a simulator (IN / OUT) but also as a dual channel thermometer (IN / IN) to perform comparison calibration. It calibrates HART transmitters (HART communicator) and thermistors. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument. Providing extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…) and audit trails, CALYS 150 complies with both 21 CFR Part 11 and NADCAP Heat Treatment standards and makes advanced data exploitation and full data traceability easier. 10 full configurations can be saved and recalled by the user or the user group, making CALYS 1500 the ideal tool for regular and repeated tasks. High performances in measurement and simulation for CALYS 1500:

• Temperature Up to 0.005 % RDG
• Resistance Up to 0.006 % RDG and 50 KΩ range
• Current: Up to 0.007 % RDG and 100 mA range + Loop Supply 24 V
• Voltage: Up to 0.005 % RDG and 50 V range
• Frequency: Up to 0.01 % RDG and 100 KHz range
• Pressure: With an external pressure module (comparison calibration with a pressure pump)

Calibration procedures and DATACAL software
Using this user-friendly instrument, calibration tasks can be quickly carried out over the whole process chain. Take the documenting process calibrator to the field with you during the whole week with 10 calibration procedures stored in the device. Run the procedure after connecting the probes to the instrument and save the results for onsite easy and quick calibration. Back to the office, you can then upload the data on a computer in order to issue customized calibration certificates with dedicated calibration software DATACAL.

Innovative and ergonomic design

• Metal housing for enhanced robustness
• Capacitive touch panel
• USB communication
• Carrying handle
• Battery and main powered

Graphic screen and display resolution
CALYS 1500 allows the digit number after the dot to be selected: This function is justified by the needs of users who want or not to display the best resolution for calibration or on the contrary limit it for simple verifications. CALYS 1500 dual display indicates permanently the measurement value, and also the emitted value, the gauge and the used functions. On the top date, time and also external temperature are also indicated. During measuring average, maximum, minimum and the number of measurements are displayed on the left. While for emission this part of screen displays all details of ramps, steps and constant value emission functions. Drop-down menus are used with the navigator, and an on-line help is available to make easier connections of probes and wires.

Specifications and performances in temperature @23°C ±5°C
Uncertainty is given in % of reading (CALYS 1500 display) + fixed value.

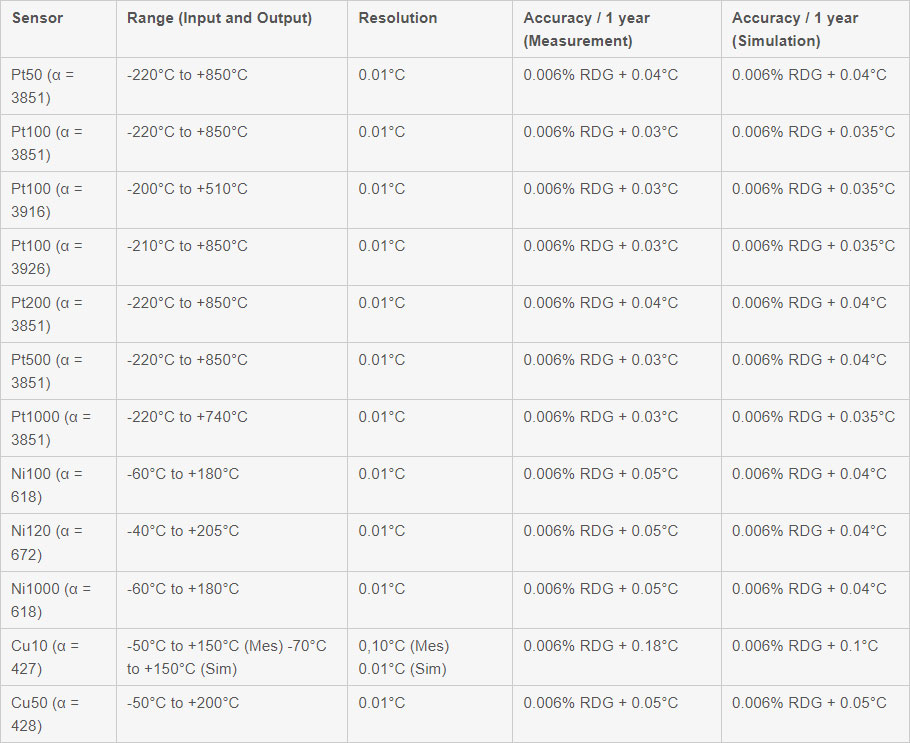

Resistive probes: Measurement and simulation

Temperature coefficient: < 10% of accuracy /°C beyond reference domain Resistive probes measurements in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen Accuracies are given for 4-wire mounted probes Take into account particular error of temperature sensor used and implementation conditions Admissible measuring current: 0.25 mA (Measurement) or 0.1 mA to 1 mA (Emission)

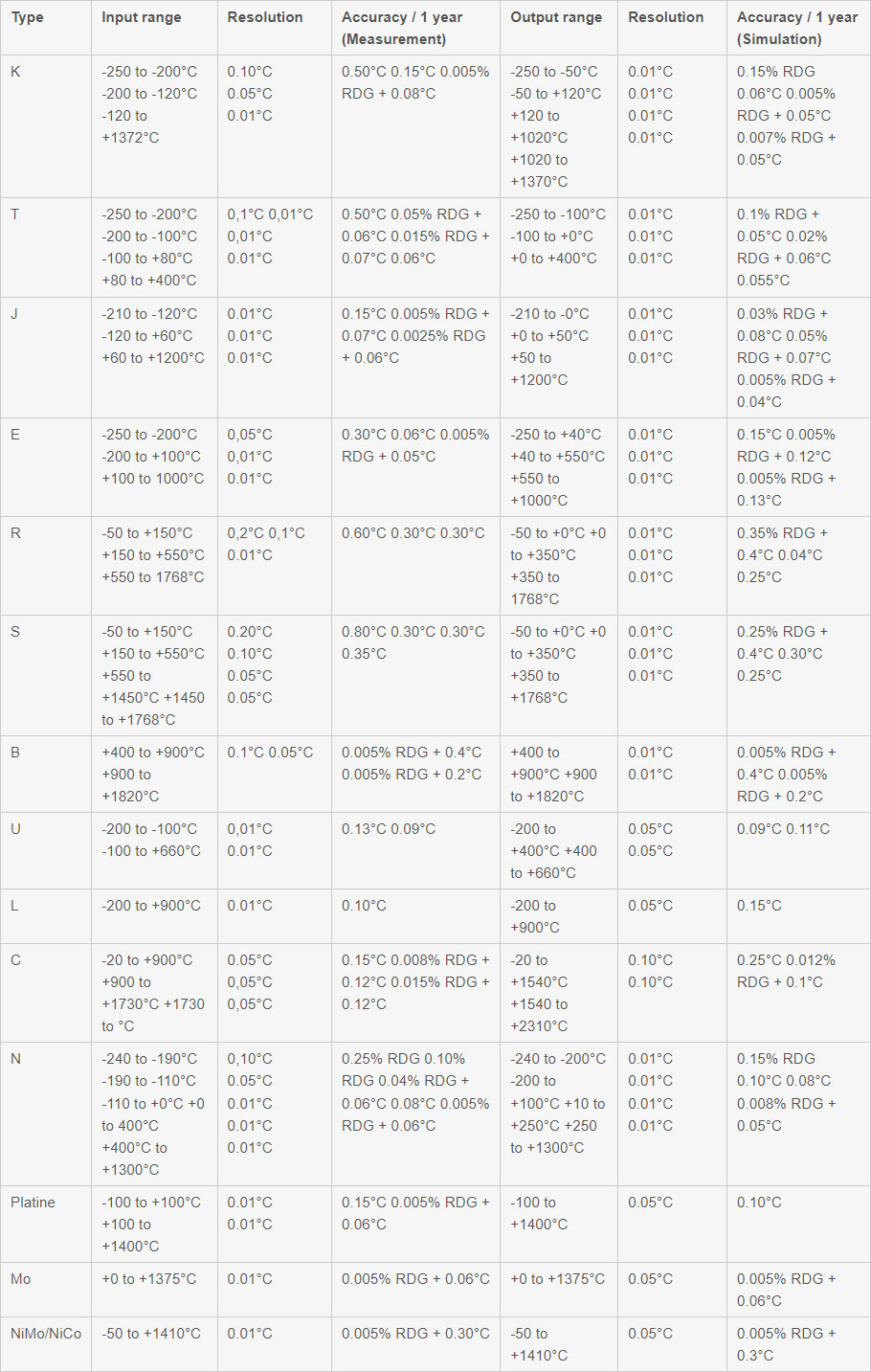

Thermocouples: Measurement and simulation

Temperature coefficient: < 5% of accuracy /°C beyond reference domain Accuracy is given for reference @ 0°C. When using the internal reference junction (except couple B) add an additional uncertainty of 0.2 °C at 0 °C. It is possible (thermocouple B excepted) to choose by programming the cold junction localization: External at 0°C, internal (temperature compensation of instrument’s terminals) or manually entered. Display unit: °C? F and K. Thermocouples: G, D: For specifications, refer to the instruction manual (Available on request)

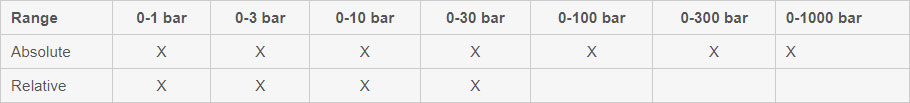

Specifications and performances in pressure @23°C ±5°C

Pressure: Measurement by external digital sensor​

Available in relative, absolute and differential pressure. Connector: ¼ gas Resolution: 0.02% FS Accuracy: -0.05% FS from 10 to 40°C - 0.1% FS from -10 to +10°C and from 40 to 80°C This digital pressure module ACL433 is connected to CALYS 1500 through RS485 serial cable to the digital input connector. All data are digital. Measurements are compensated in temperature by a polynomial correction implemented into the firmware at factory.

Specifications and performances in process @23°C ±5°C

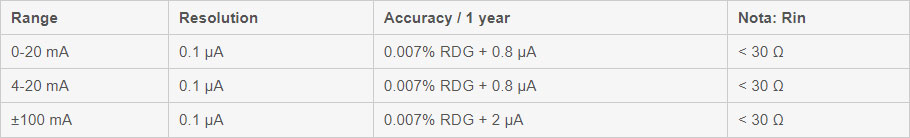

DC current: Measurement
With or without loop supply

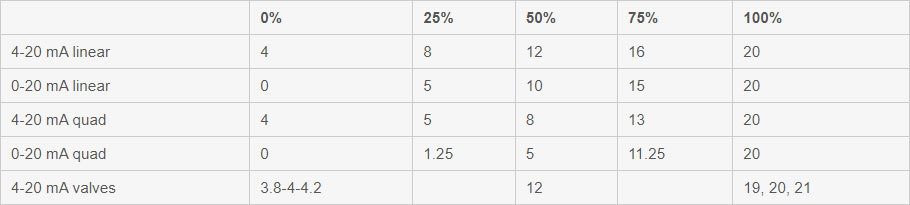

Temperature coefficient: < 7% of accuracy /°C beyond reference domain Loop supply: 24 V ±10% HART® compatibility: Input impedance Rin = 280 Ω CALYS 1500 also allows linear or quadratic signals to be linearized. Specifications given for CALYS configurations in: - Active mode (+24V ON) 1 Meter in passive mode (+24 V OFF) - Passive mode (+24 V OFF) 1 Meter in active mode (+24 V ON)

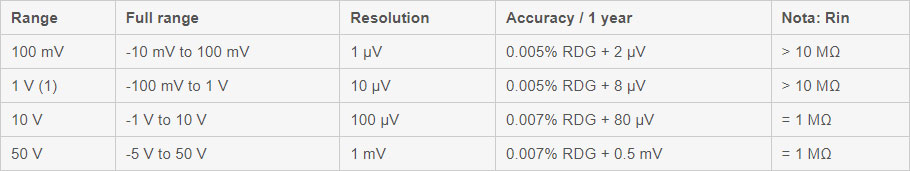

Direct voltage: Measurement​

Temperature coefficient: < 5% of accuracy /°C beyond reference domain

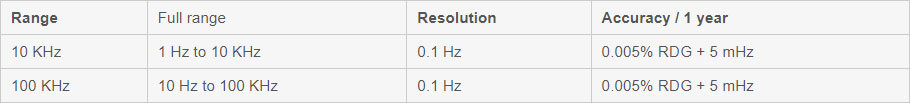

Frequency and counting: Measurement

Temperature coefficient: < 5 ppm/°C beyond reference domain Scale unit: Pulse / min and Hz Trigger level: 1 V Measurement on frequency signals or dry contacts Counting will be performed on defined time or infinite time

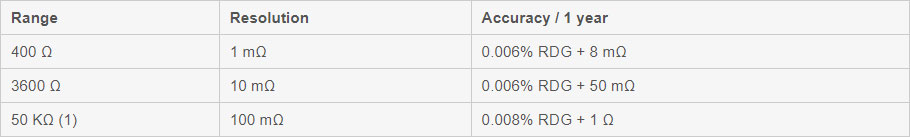

Resistance: Measurement

(1) Range on channel 1 only. Temperature coefficient: < 7 ppm/°C beyond reference domain 2, 3 or 4 wires resistance measurement: automatic recognition of number of connected wires, with indication on screen Accuracies are given for 4-wire mounted probes Open circuit terminal voltage: < 10 V Continuity test: Open circuit for R > 1000 Ω and closed circuit for R < 1000 Ω

Direct voltage: Emission​

Temperature coefficient: < 7 ppm/°C beyond reference domain Settling time: < 5 ms Specifications given for CALYS configurations in: - Active mode (+24V ON) 1 Meter in passive mode (+24 V OFF) - Passive mode (+24 V OFF) 1 Meter in active mode (+24 V ON) Pre-programmed steps

Direct voltage: Emission

Temperature coefficient: < 5 ppm/°C beyond reference domain

Frequency and pulses: Emission

Temperature coefficient: < 5 ppm/°C beyond reference domain Scale unit: Pulse / min and Hz Pulse emission and dry contact simulation Max amplitude: 20 V selectable by user

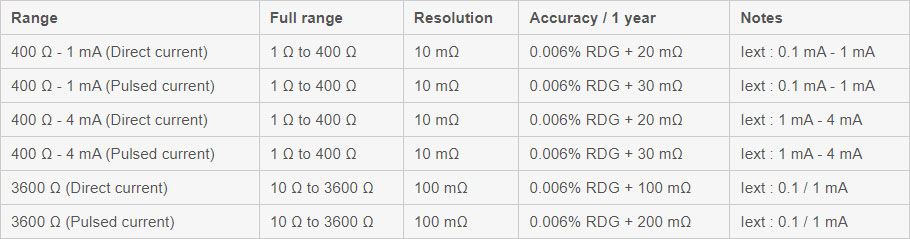

Resistance: Emission​

Temperature coefficient: < 5 ppm/°C beyond reference domain Iext : Current received by the calibrator
