潤滑油過濾裝置

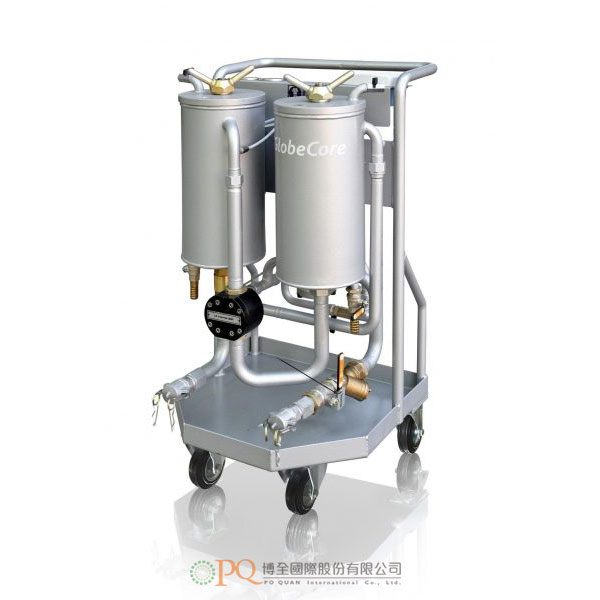

CMM-4,0F OIL FILTRATION UNIT 型號:CMM-4.0F

CMM-4,0F是一款適合於現場的過濾移動裝置,其特點是吸附式過濾器,設計用於

  1. 去除固體顆粒物;
  2. 去除灰塵;
  3. 去除水份;
  4. 去除水溶性酸;
  5. 去除50°C時粘度不超過70cSt的工業油的鹼。
  • CMM-4,0F是一款適合於現場的過濾移動裝置,其特點是吸附式過濾器,設計用於

    1. 去除固體顆粒物;
    2. 去除灰塵;
    3. 去除水份;
    4. 去除水溶性酸;
    5. 去除50°C時粘度不超過70cSt的工業油的鹼。

    操作的環境條件:

    • 環境溫度+10至+35℃。
    • 壓力84-106.7 kPa(630-800 mm.hg)。
    • 海拔高達2000 m。
    • 高爆環境和消防安全區。

    優勢

    易於維護和操作。
    體積小。
    推車形式,方便移動。
    隨機附有必要的備品零件,方便替換。

  • Parameter

    Value

    CMM-1.7F

    CMM -4,0F

    CMM -6,0F

    Capacity, m3/hour / gals. per hour

    1.7/450

    4/1059

    6/1588

    Filtration fineness, micron**

    5

    25

    20

    Nominal power, kW

    2.2

    3

    3

    Output oil pressure, MPa

    0.25

    0.3

    0.3

    AC 50 Hz power voltage, V**

    380

    380

    400

    Dimensions, mm/ft length/ width / height

    600/600/1100

    2’/2’/3’8’’

    580/560/1115

    1’11’’/1’11’’/3’9’’

    670/625/995

    2’3’’/2’1’’/3’3’’

    Weight, kg/lbs

    110/242.5

    120/264.5

    135/297.6



    Parameter Value
    CMM-0.8F CMM-0.5F
    Capacity, m3/hour / gals. per hour 0.3…0.8*/79.4…211.7 0.5/132
    Filter element:
    • depth filter, can be regenerated “APRIS”- 6MI-II FE-18
    • cartridge filter FE-16
    Processed oil temperature, ºС/ ºF 20…50/ 68…122 20…50/68…122
    Processed oil parameters:
    • water removal, % 92…98
    • solid particle removal, % 93…97
    • filtration, micron 3…5
    Nominal power, kW 0.75 0.75
    Oil output pressure, MPa 0.3
    Three phase 50Hz AC voltage, V 380 380
    Dimensions, mm/ft, length/ width / height

    580/480/1350

    1’11”/1’7”/4’5”

    640/640/1370

    2’1”/2’1”/4/6”

    Weight, kg/lbs 60/132.6 100/221

    *Depends on the type of oil processed

    **Filtration fineness and voltage parameters may vary depending on the requirement of the Client or the region of use of the product

    Note. Specifications are valid for oils, which contain no:

    • surfactants or other substances facilitates trapping water in the oil;
    • water emulsions created mechanically or chemically.
  • The CMM-4,0F is an on-site filtration cart featuring an adsorption filter that is designed for: (1) removal of solid particulate matter; (2) removal of ash; (3) removal of dissolved water; (4) removal of water-soluble acids; and (5) removal of alkali from industrial oil with viscosity of no more than 70 cSt at 50°C/122°F.
    Ambient conditions for operation:

    • ambient temperature +10 to +35°C/ 50 to 98°F);
    • pressure 84 to106.7 kPa (630 to 800 in. hg);
    • max elevation above sea level 2000 meters/6561 feet;
    • Explosion and fire-proof area.

    Advantages

    • Easy to maintain and operate;
    • Compact size;
    • Mobility;
    • Spare parts included.
  • Parameter

    Value

    CMM-1.7F

    CMM -4,0F

    CMM -6,0F

    Capacity, m3/hour / gals. per hour

    1.7/450

    4/1059

    6/1588

    Filtration fineness, micron**

    5

    25

    20

    Nominal power, kW

    2.2

    3

    3

    Output oil pressure, MPa

    0.25

    0.3

    0.3

    AC 50 Hz power voltage, V**

    380

    380

    400

    Dimensions, mm/ft length/ width / height

    600/600/1100

    2’/2’/3’8’’

    580/560/1115

    1’11’’/1’11’’/3’9’’

    670/625/995

    2’3’’/2’1’’/3’3’’

    Weight, kg/lbs

    110/242.5

    120/264.5

    135/297.6



    Parameter Value
    CMM-0.8F CMM-0.5F
    Capacity, m3/hour / gals. per hour 0.3…0.8*/79.4…211.7 0.5/132
    Filter element:
    • depth filter, can be regenerated “APRIS”- 6MI-II FE-18
    • cartridge filter FE-16
    Processed oil temperature, ºС/ ºF 20…50/ 68…122 20…50/68…122
    Processed oil parameters:
    • water removal, % 92…98
    • solid particle removal, % 93…97
    • filtration, micron 3…5
    Nominal power, kW 0.75 0.75
    Oil output pressure, MPa 0.3
    Three phase 50Hz AC voltage, V 380 380
    Dimensions, mm/ft, length/ width / height

    580/480/1350

    1’11”/1’7”/4’5”

    640/640/1370

    2’1”/2’1”/4/6”

    Weight, kg/lbs 60/132.6 100/221

    *Depends on the type of oil processed

    **Filtration fineness and voltage parameters may vary depending on the requirement of the Client or the region of use of the product

    Note. Specifications are valid for oils, which contain no:

    • surfactants or other substances facilitates trapping water in the oil;
    • water emulsions created mechanically or chemically.
