保護繼電器測試儀

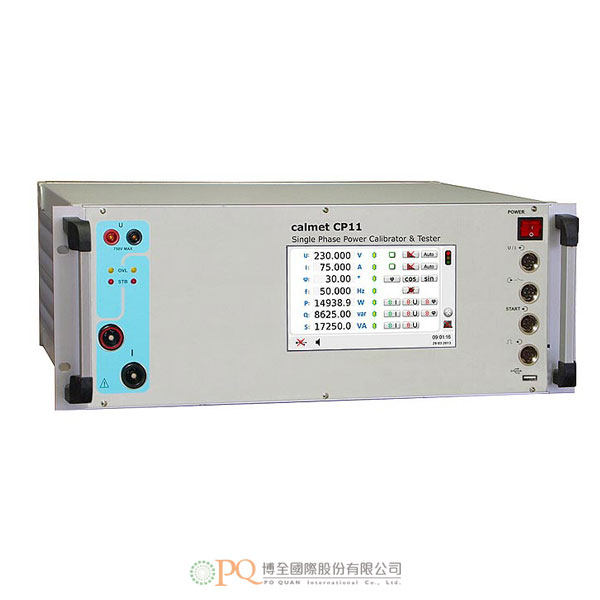

Protection relay test set 型號:CP11B

Single phase, class 0.02 and 0.05 power quality calibrator up to 120A and 560VAC with programmable power quality parameters. It makes possible to make automatic test of electricity meters, measurement transducers, current transformers and protection relays

    • Voltage source up to 560V
    • Current source up to 120A with a single pair of current sockets
    • Accuracy class 0.02% or 0.05% to calibrate digital instruments
    • Single product in a single case without auxiliary amplifiers
    • High burden of outputs to drive older analogue instruments
    • Large color Touchscreen and Calpro 300 PCsoft
    • Manual mode and automatic test procedures
  • General parameters

    Weight

    14kg

    Width x height (with feet) x depth (with feet and handle)

    (448x181x431)mm

    Power supply

    90V…264V / 47...63Hz / 300VA
