網路質量分析儀

ower network quality analyser 型號:Caltest 300

Portable power network quality analyser class 0.05 or 0.1. It makes possible to test electricity meters and instrument transformers. We recommend a new replacement - TE30 Working Standard and TS33 - Three phase Fully Automatic Test System

  • Analyzer Caltest 300 is used for testing of single and three phase energy meters and current transformers:

    • in accuracy class 0.05 and 0.1,
    • in current range 0.001...3000A, with additional functions:
    • verification of power network wiring,
    • measure, recording and analyze of power network parameters and power quality,
    • multi-variant data entering – digital and graphical display, internal memory, local printing, transmission by interface and analysis on PC computer.

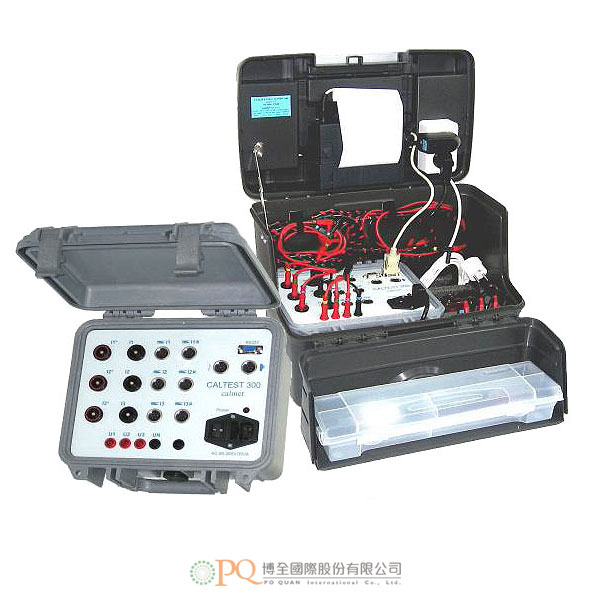

    Caltest 300 Portable Analyzer and Tester

    • Measure of power network parameters (class 0.05 or 0.1)
    • Voltage range 0.5…300V and 0.1…40kV
    • Current range 0.001...10(100)(1000)(2000)(30/300/3000)A
    • Testing of energy meters
    • Testing of Current and Potential Transformer
    • Vector and oscilloscope charts of three phase network
    • Recording and analyse of power quality
    • Powering from measurement network
    • Calibration Certificate
  • Optionally Caltest 300 set may be equipped in:

    • computer Laptop,
    • CT10A miniature electronic compensated clamps up to 10A (3pcs),
    • CT100A miniature electronic compensated clamps up to 100A (3pcs),
    • CT1000A electronic compensated clamps up to 1000A (3pcs),
    • FCT3000A electronic compensated flexible clamps in ranges 30/300/3000A (3pcs),
    • AmpLiteWire 2000A primary current sensors up to 2000A (3pcs),
    • VoltLiteWire 40kV primary voltage sensors up to 40kV (3pcs),
    • AKD300 current cables up to 120A (6pcs) with set (18unit) of replaceable terminals,
    • KAS100 transportation, plastic case for carrying and working with analyzer,
    • C091A T3475-001 plug Amphenol for relay outputs.
