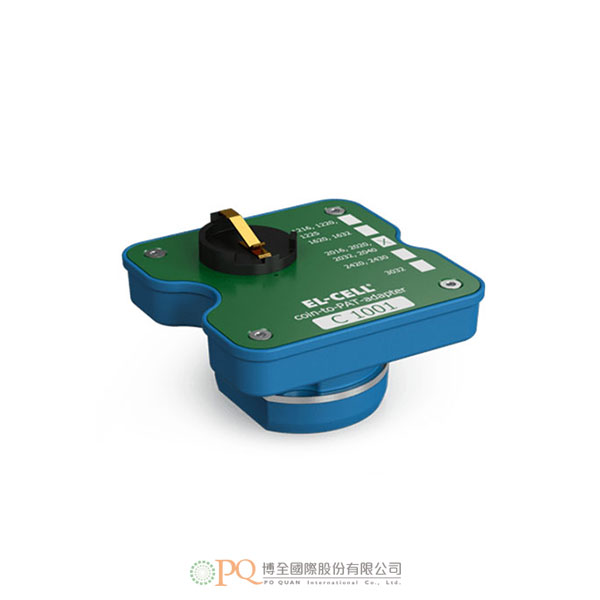

Coin-PAT-Adapter

Coin-PAT-Adapter 型號:Coin-PAT-Adapter
  • Adapter for using a button cell in a PAT series docking station or potentiostat

    Product description

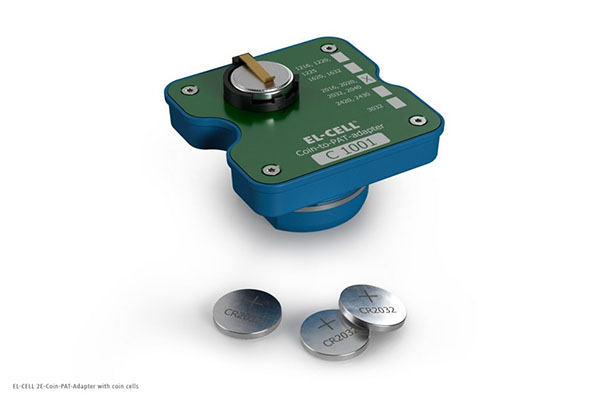

    The Coin-PAT-Adapter enables the operation of conventional 2-electrode coin cells in the PAT system. In contrast to the universal 3E-Coin-PAT-Adapter, this adapter can only accept coin cells with a specific diameter. Therefore different versions are available for button cells with 12, 16, 20, 24 and 30 mm diameter.

    In addition, the adapter features automatic cell detection in all EL-CELL potentiostats. When plugged into a PAT battery tester, it is identified by its electronic signature and displayed in EL-Software.

  • Coin-PAT-Adapter

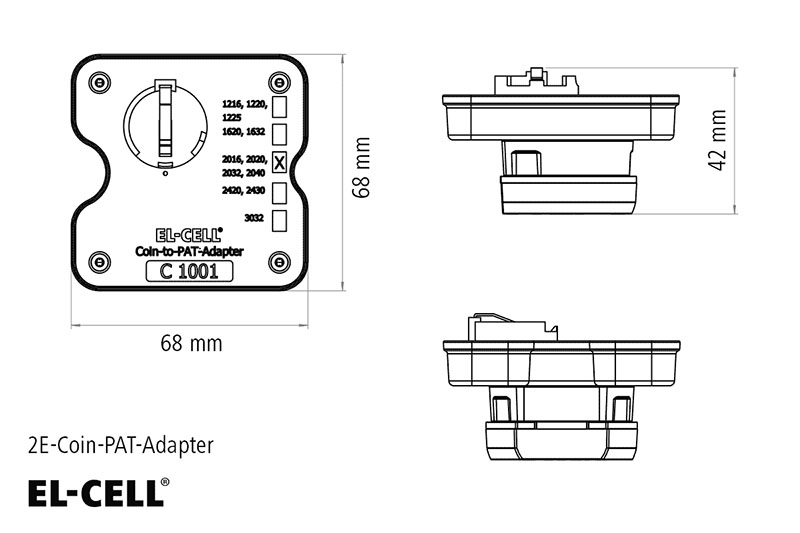

    Height   42 mm
    Width   68 mm
    Depth   68 mm
    Max. diameter of coin cell Coin-PAT-Adapter 12 12 mm
      Coin-PAT-Adapter 16 16 mm
      Coin-PAT-Adapter 20 20 mm
      Coin-PAT-Adapter 24 24 mm
      Coin-PAT-Adapter 30 30 mm
    Max. height of coin cell   4 mm
