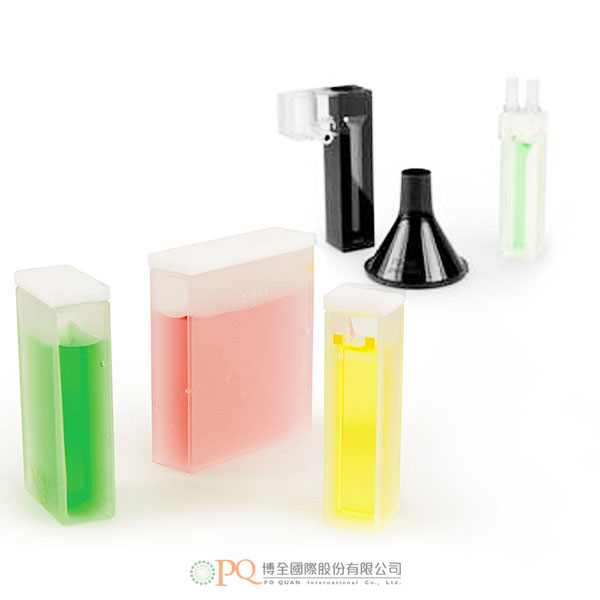

Cuvettes for Spectrophotometry
Cuvettes for Spectrophotometry 型號：Cuvettes-
Jenway offer an extensive range of cuvettes for measuring liquid samples. The cuvette required will depend on the wavelength range required and the sample volume available. Glass cuvettes are only suitable for the visible region, whereas quartz may be used in both the UV and visible region. A 10mm cuvette typically holds 2 to 3ml of sample.
-
The table below gives detailed specifications for the cuvettes for our range of Jenway spectrophotometers and fluorimeters. The centre height of all cuvettes (where applicable) is 15mm.
Part code
Description
Outside Dimensions (mm)
Min. Vol.
Max. Vol.
Path length (mm)
Wavelength range
Material
060 084
Plastic - Visible only
45 x 12.5 x 12.5
2.5ml
4.5ml
10
340-900nm
PS
060 087
Plastic - Visible only - Semi micro
45 x 12.5 x 12.5
1.5ml
3.0ml
10
340-900nm
PS
060 230
Plastic - UV and visible
45 x 12.5 x 12.5
2.5ml
4.5ml
10
230-900nm
UV plastic
060 231
Plastic - UV and visible - Semi micro
45 x 12.5 x 12.5
1.5ml
3.0ml
10
230-900nm
UV plastic
035 1431
Plastic - UV and visible - Micro
45 x 12.5 x 12.5
70µl
550µl
10
230-900nm
UV plastic
035 027
Glass - Visible only
45 x 12.5 x 12.5
2ml
3.8ml
10
360-2500nm
TG/OG
035 086
Glass - Visible only - 20mm path length
45 x 12.5 x 22.5
4ml
7ml
20
360-2500nm
TG/OG
035 029
Glass - Visible only - 40mm path length
45 x 12.5 x 42.5
8ml
14ml
40
360-2500nm
TG/OG
035 087
Glass - Visible only- 50mm path length
45 x 12.5 x 52.5
9ml
17.5ml
50
320-2500nm
OS
035 079
Glass - Visible only - 100mm path length
45 x 12.5 x 102.5
19ml
35ml
100
340-2500nm
OG
035 123
Glass - Visible only - Micro
45 x 12.5 x 12.5
300µl
800µl
10
320-2500nm
OS
035 126
Glass - Visible only - Semi-micro
45 x 12.5 x 12.5
600µl
1.4ml
10
320-2500nm
OS
035 045
Glass- Visible only - Flow-through
45 x 12.5 x 12.5
80µl
10
320-2500nm
OS
※ Must be used with the 630 304 micro cuvette holder.
