Asynt > 壓力反應器 ( 釜 )

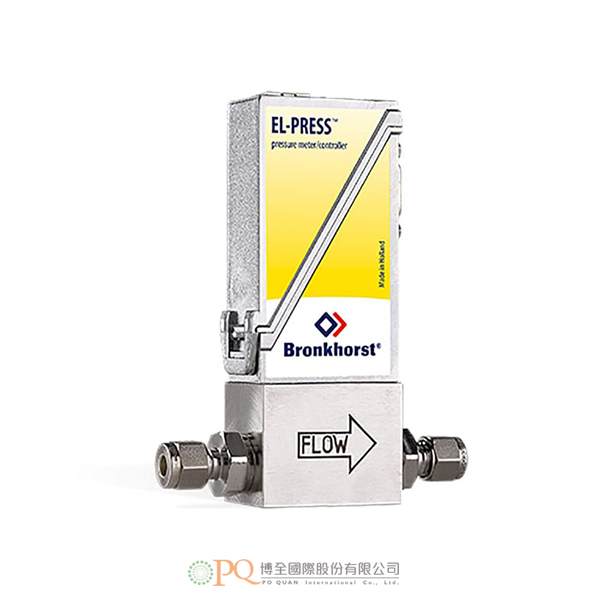

12Asynt-meter-P-502C

Digital Electronic Pressure Meter

Bronkhorst 數位電子壓力計系列適用於精確測量 2…100 mbar 和 1,28…64 bar 絕對壓力或 0,7…35 mbar 和 1,28…64 bar 表壓之間的壓力範圍. 這些感測器（或 EPT）具有久經考驗的緊密型通流設計，包括一個隔膜型壓阻式壓力感測器、一個基於微處理器的PC板，具有信號和現場總線轉換功能，以及一個單獨安裝的控制閥用於可選壓力控制的PID控制器。
加入洽詢
產品特點 產品規格 Features Specifications

  • EL-PRESS系列配備數位印刷電路板，提供高精度、出色的溫度穩定性和快速回應。主數位印刷電路板包含測量和控制所需的所有一般功能。除了標準的 RS232 輸出外，儀器還提供模擬 I/O。作為一個選項，可以安裝板載接口以提供 CANopen®、DeviceNet™、EtherCAT®、PROFIBUS DP、PROFINET、Modbus RTU、ASCII 或 TCP/IP、EtherNet/IP、POWERLINK 或 FLOW-BUS 協定。

    數位電子壓力表的主要特點包括：

    • 針對絕壓或表壓
    • 高精度和可重複性
    • 久經考驗的緊密型通流設計
    • 用於壓力控制的板載PID控制器
    • 模擬、RS232和現場總線通信

    它是如何運作的？

    Bronkhorst EL-PRESS壓力感測器是一個位於矽芯片表面的壓阻橋。該芯片在其反面鑽出，使芯片內部形成壓力膜片的形式，其厚度決定了壓力範圍。當壓力作用在這個芯片上時，膜片會彎曲，壓阻橋的電阻值會與壓力成比例地變化。測量單元通過一個薄且靈敏的不銹鋼隔膜與外部壓力隔開，且隔膜和單元之間的密封腔也填滿了注油。
    也可提供其他型號/規格。

  • Measurement / Control System

    Absolute pressure sensors
    Code: 350A Ranges (FS): 100 … 350 mbara P-max: 1,0 bara Burst pressure: 1,4 bara
    Code: 1K1A Ranges (FS): 0,35 … 1,1 bara P-max: 3,1 bara Burst pressure: 4,2 bara
    Code: 6K0A Ranges (FS): 1,1 … 6 bara P-max: 10,5 bara Burst pressure: 14 bara
    Code: 21KA Ranges (FS): 6 … 21 bara P-max: 62 bara Burst pressure: 84 bara
    Code: M10A Ranges (FS): 20 … 100 bara P-max: 200 bara Burst pressure: n.a.
    Relative pressure sensors
    Code: 100R Ranges (FS): 35 … 100 mbarg P-max: 0,7 barg Burst pressure: 0,8 barg
    Code: 350R Ranges (FS): 100 … 350 mbarg P-max: 1,0 barg Burst pressure: 1,4 barg
    Code: 1K1R Ranges (FS): 0,35 … 1,1 barg P-max: 3,1 barg Burst pressure: 4,2 barg
    Code: 6K0R Ranges (FS): 1,1 … 6 barg P-max: 10,5 barg Burst pressure: 14 barg
    Code: 21KR Ranges (FS): 6 … 21 barg P-max: 62 barg Burst pressure: 84 barg
    Accuracy (incl. linearity and hysteresis) standard: ± 0,5 % FS
    Repeatability < 0,1 % RD
    Pressure rangeability 1:50 for pressure meter;
    1 : 20 for P2-control; 1 : 5 for P1-control
    Response time (sensor) 2 msec
    Operating temperature -10 … +70 °C
    Temperature sensitivity 0,1% FS/°C
    Leak integrity, outboard tested < 2 x 10-9 mbar l/s He
    Attitude sensitivity max. error at 90° off horizontal < 0,3 mbar
    Warm-up time negligible

    Mechanical Parts

    Material (wetted parts) stainless steel 316L or comparable
    Process connections compression type or face seal (VCR/VCO) couplings
    Seals standard: Viton®;
    options: EPDM, Kalrez® (FFKM), FDA and USP Class VI approved compounds
    Weight 0,4 kg
    Ingress protection IP40

    Electrical Properties

    Power supply +15 … 24 Vdc
    Max. power consumption meter
    Supply
    15 V
    24 V    		 at voltage I/O
    95 mA
    65 mA    		 at current I/O
    125 mA
    85 mA    		 extra for fieldbus
    <75 mA
    <50 mA
    Max. Power consumption controller
    Supply
    15 V
    24 V    		 at voltage I/O
    290 mA
    200 mA    		 at current I/O
    320 mA
    215 mA    		 extra for fieldbus
    <75 mA
    <50 mA
    Analog output 0…5 (10) Vdc or 0 (4)…20 mA (sourcing output)
    Digital communication standard: RS232;
    options: CANopen®, DeviceNet™, EtherCAT®, PROFIBUS DP, PROFINET, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK or FLOW-BUS

    Electrical Connection

    Analog/RS232 9-pin D-connector (male);
    PROFIBUS DP bus: 9-pin D-connector (female);
    power: 9-pin D-connector (male);
    CANopen® / DeviceNet™ 5-pin M12-connector (male);
    FLOW-BUS/Modbus-RTU/ASCII RJ45 modular jack
    Modbus TCP / EtherNet/IP / POWERLINK 2 x RJ45 modular jack (in/out);
    EtherCAT®/ PROFINET 2 x RJ45 modular jack (in/out);

    請注意：

    壓力感測器的測量單元通過一個薄而靈敏的不銹鋼隔膜與外部壓力隔開，且隔膜和單元之間的密封腔內填滿了注油。由於標準注油是易燃的，因此 Bronkhorst 建議在使用氧氣或任何其他易爆液體時採取預防措施。

  • EL-PRESS series are equipped with a digital pc-board, offering high accuracy, excellent temperature stability and fast response. The main digital pc-board contains all of the general functions needed for measurement and control. In addition to the standard RS232 output the instruments also offer analog I/O. As an option, an on-board interface can be mounted to provide CANopen®, DeviceNet™, EtherCAT®, PROFIBUS DP, PROFINET, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK or FLOW-BUS protocols.

    Key features of the digital electronic pressure meter include:

    • For absolute or gauge pressure
    • High accuracy and repeatability
    • Well proven, compact thru-flow design
    • On-board PID controller for pressure control
    • Analog, RS232 and fieldbus communication

    How does it work?

    The Bronkhorst EL-PRESS pressure sensor is a piezoresistive bridge on the surface of a silicon chip. This chip is drilled out on its reverse side, giving the inside of the chip the form of a pressure diaphragm, whose thickness determines the pressure range. When a pressure acts on this chip, the diaphragm flexes, and the resistor values of the bridge alter in proportion to the pressure. The measuring cell is separated from the external pressure by a thin, sensitive stainless steel diaphragm, and the sealed off cavity between diaphragm and cell is filled with oil.

    Other models/specifications are also available.

  • Measurement / Control System

    Absolute pressure sensors
    Code: 350A Ranges (FS): 100 … 350 mbara P-max: 1,0 bara Burst pressure: 1,4 bara
    Code: 1K1A Ranges (FS): 0,35 … 1,1 bara P-max: 3,1 bara Burst pressure: 4,2 bara
    Code: 6K0A Ranges (FS): 1,1 … 6 bara P-max: 10,5 bara Burst pressure: 14 bara
    Code: 21KA Ranges (FS): 6 … 21 bara P-max: 62 bara Burst pressure: 84 bara
    Code: M10A Ranges (FS): 20 … 100 bara P-max: 200 bara Burst pressure: n.a.
    Relative pressure sensors
    Code: 100R Ranges (FS): 35 … 100 mbarg P-max: 0,7 barg Burst pressure: 0,8 barg
    Code: 350R Ranges (FS): 100 … 350 mbarg P-max: 1,0 barg Burst pressure: 1,4 barg
    Code: 1K1R Ranges (FS): 0,35 … 1,1 barg P-max: 3,1 barg Burst pressure: 4,2 barg
    Code: 6K0R Ranges (FS): 1,1 … 6 barg P-max: 10,5 barg Burst pressure: 14 barg
    Code: 21KR Ranges (FS): 6 … 21 barg P-max: 62 barg Burst pressure: 84 barg
    Accuracy (incl. linearity and hysteresis) standard: ± 0,5 % FS
    Repeatability < 0,1 % RD
    Pressure rangeability 1:50 for pressure meter;
    1 : 20 for P2-control; 1 : 5 for P1-control
    Response time (sensor) 2 msec
    Operating temperature -10 … +70 °C
    Temperature sensitivity 0,1% FS/°C
    Leak integrity, outboard tested < 2 x 10-9 mbar l/s He
    Attitude sensitivity max. error at 90° off horizontal < 0,3 mbar
    Warm-up time negligible

    Mechanical Parts

    Material (wetted parts) stainless steel 316L or comparable
    Process connections compression type or face seal (VCR/VCO) couplings
    Seals standard: Viton®;
    options: EPDM, Kalrez® (FFKM), FDA and USP Class VI approved compounds
    Weight 0,4 kg
    Ingress protection IP40

    Electrical Properties

    Power supply +15 … 24 Vdc
    Max. power consumption meter
    Supply
    15 V
    24 V    		 at voltage I/O
    95 mA
    65 mA    		 at current I/O
    125 mA
    85 mA    		 extra for fieldbus
    <75 mA
    <50 mA
    Max. Power consumption controller
    Supply
    15 V
    24 V    		 at voltage I/O
    290 mA
    200 mA    		 at current I/O
    320 mA
    215 mA    		 extra for fieldbus
    <75 mA
    <50 mA
    Analog output 0…5 (10) Vdc or 0 (4)…20 mA (sourcing output)
    Digital communication standard: RS232;
    options: CANopen®, DeviceNet™, EtherCAT®, PROFIBUS DP, PROFINET, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK or FLOW-BUS

    Electrical Connection

    Analog/RS232 9-pin D-connector (male);
    PROFIBUS DP bus: 9-pin D-connector (female);
    power: 9-pin D-connector (male);
    CANopen® / DeviceNet™ 5-pin M12-connector (male);
    FLOW-BUS/Modbus-RTU/ASCII RJ45 modular jack
    Modbus TCP / EtherNet/IP / POWERLINK 2 x RJ45 modular jack (in/out);
    EtherCAT®/ PROFINET 2 x RJ45 modular jack (in/out);

    Please Note:

    The measuring cell of the pressure sensor is separated from the external pressure by a thin, sensitive stainless steel diaphragm, and the sealed off cavity between diaphragm and cell is filled with oil. Since the standard oil filling is flammable, Bronkhorst advises to take precautions when oxygen or any other explosive fluid is used.
