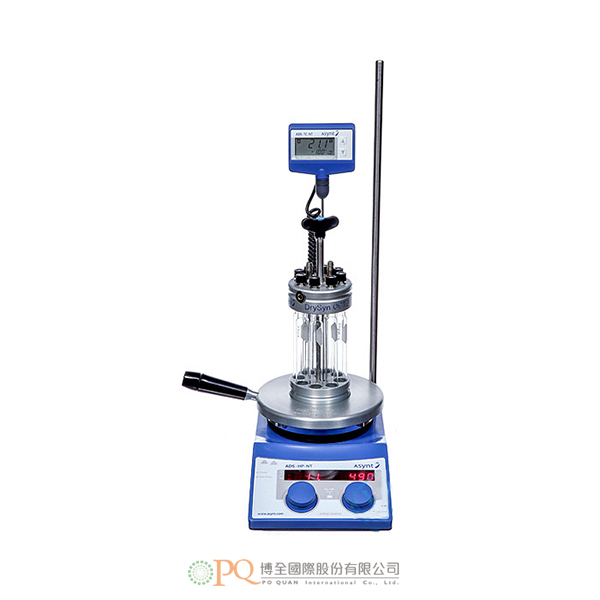

DrySyn OCTO Reaction Station

這種創新設計對於高達6mL的工作體積非常有用，並且已指定允許使用低成本的反應管，以盡可能節省您實驗室的耗材。

雖然對8個平行反應來說很出色，但你可以在一個標準磁熱板攪拌器上使用多達3個DrySyn OCTO反應台，因此允許多達24個平行反應。

MKII DrySyn OCTO 在推出了一些美觀的更新，我們的客戶無需支付額外費用！查看我們的「影片」以獲取更多資訊。

• 8個平行位置
• 可與任何熱板攪拌器一起使用
• 強大的磁力攪拌
• 體積小巧
• 氣密性好，可以使用惰性氣氛
• 試管的大玻璃面積允許使用空氣冷凝和溫和回流條件
• 每支試管的工作容積為5-6mL
• DrySyn插件內的加熱區域：4ml容積
• 允許使用低成本的消耗性反應管
• 可在惰性條件下使用注射器進行添加或取樣。
• 該裝置使用低成本的、易於更換的消耗品。
• 一個磁熱板攪拌器上最多可以同時使用3個DrySyn Octo裝置，允許在非常小的空間內進行24個平行反應。

可用套件/組件：

• ADS19：
  • 僅限DrySyn OCTO反應台（不包括單個裝置、蓋子和隔膜）
• ADS19-A DrySync OCTO初學者工具包：
  •  DrySyn OCTO反應台
  •  10支Kimax試管
  •  10個蓋子和隔膜
  •  10個攪拌棒。
• ADS19-KIT DrySync OCTO套件：
  • 1個DrySyn OCTO反應台（單機）
  • 24支Kimax試管
  • 100個蓋子和隔膜
  • 10 個攪拌棒
• ADS19-TUBES (僅24支試管的包裝)
• ADS19-CAP (僅包裝100個蓋子)
• ADS19-SEPTUM (僅包装100个PTFE面的隔膜)
• ADS19-STIR (一包10個磁性攪拌棒)
• ADS19-BASE (DrySyn UNO單一位置底座)

This innovative design has been found incredibly useful for working volumes of up to 6ml and has been specified to allow the use of low-cost reaction tubes to save as much as possible on consumables for your lab.

Whilst brilliant for 8 parallel reactions, you can use up to 3 DrySyn OCTO Reaction Stations on just one standard magnetic hotplate stirrer therefore allowing up to 24 parallel reactions.

The MKII DrySyn OCTO has now been launched with some aesthetically pleasing updates at no additional cost to our customers! Take a look at our “videos” tab here for more information.

• 8 parallel positions
• Works with any hotplate stirrer
• Powerful magnetic stirring
• Compact size
• Gas tight closure allowing inert atmospheres to be used
• The large glass area of the tubes allows for air condensing and gentle reflux conditions to be used
• Working volume 5-6 mL per tube
• Heated area within the DrySyn insert: 4ml volume
• Allows use of low cost consumable reaction tubes
• Additions or sampling can be made whilst under inert conditions using a syringe.
• The unit uses low cost easily replaceable consumable setums
• Up to 3 DrySyn Octo units can be used together on one magnetic hotplate stirrer allowing 24 parallel reactions to be performed in a very small space.

Kits/Components available:

• ADS19:
  • DrySyn OCTO Reaction Station only (single unit, caps & septa not included)
• ADS19-A DrySyn OCTO Starter Kit:
  • DrySyn OCTO Reaction Station
  • 10 x Kimax tubes
  • 10 x caps & septums
  • 10 x stirrer bars.
• ADS19-KIT DrySyn OCTO Kit:
  • 1 DrySyn OCTO Reaction Station (single unit)
  • 24 x Kimax tubes
  • 100 x caps and septums
  • 10 x stirring bars
• ADS19-TUBES (Pack of 24 tubes only)
• ADS19-CAP (Pack of 100 caps only)
• ADS19-SEPTUM (Pack of 100 PTFE faced septum only)
• ADS19-STIR (Pack of 10 magnetic stirrer bars)
• ADS19-Base (DrySyn UNO Single Position base)
