ECC-Aqu

Product description

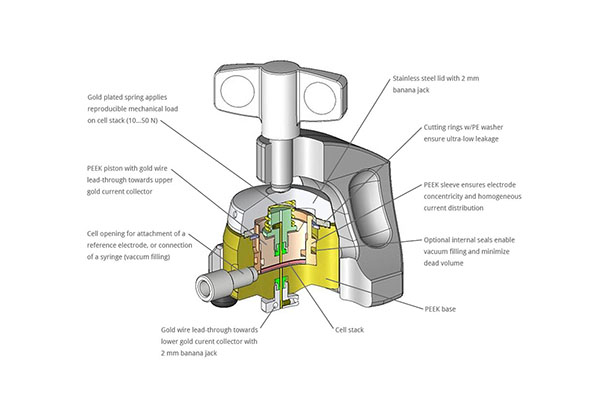

The ECC-Aqu electrochemical cell is dedicated to the characterization of aqueous battery and capacitor systems. The cell is equipped with a reference electrode assembly. Cell parts that come in contact with the electrolyte are made of gold and PEEK and can thus withstand all common aqueous electrolytes like sulphuric acid (up to 50% concentration) or potassium hydroxide. Other construction materials like platinum are optionally available.

Features

• Operation with or without reference electrode
• High precision 18 mm diameter sandwich geometry with <0.1 mm electrode concentricity
• Reliable low leakage sealing with PE washer
• Easy and reliable electrolyte filling during assembly
• Fast assembly and dismantling and easy cleaning of cell components
• Electrodes are easily accessible for post-mortem analysis
• Reusable cell components except for PE seal
• Adjustable, reproducible and homogeneous mechanical pressure on electrodes

*with optional Heat Resistance Set ECC1-01-0040-A
