Low Noise Amplifier

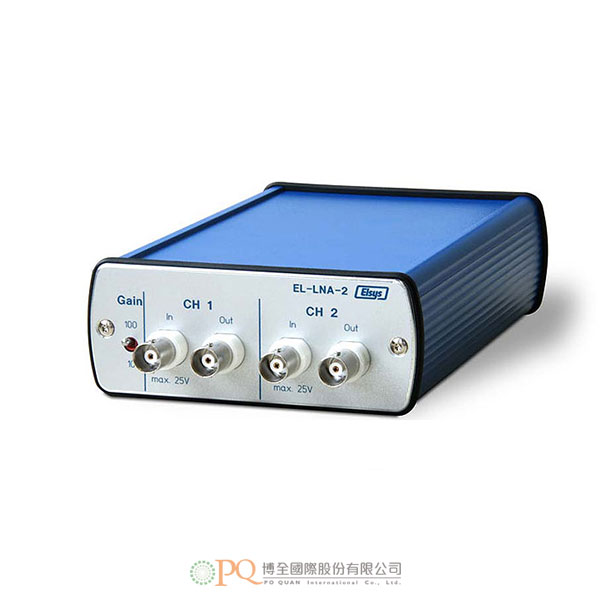

Low Noise Amplifier 型號:EL-LNA-2
  • Gain x10 and x100
  • Differential input stage
  • Input noise 4.5 nV / (Hz) 1/2
  • Input impedance 1 MOhm
  • Max. Output Voltage Swing
    • ± 2.5 V @ no load
    • ± 1.25 V @ 50 Ohm
  • Bandwidth 20 MHz (G=10), 15 MHz (G=100)
  • The amplifier EL-LNA-2 is designed as a differential low noise amplifier with two gain stages of x10 and x100 with a full bandwidth of 20 MHz (at G=10)

    While the EL-LNA-2 is matched to connect to an Elsys high-precision Transient Recorder it is also suitable for any 3rd party data acquisition system.

    • Gain x10 and x100
    • Differential input stage
    • Input noise 4.5 nV / (Hz) 1/2
    • Input impedance 1 MOhm
    • Max. Output Voltage Swing;
      • ± 2.5 V @ no load
      • ± 1.25 V @ 50 Ohm
    • Bandwidth 20 MHz (G=10), 15 MHz (G=100)



  • ★ 詳細規格請洽詢,我們將有專業人員為您服務!

    Parameter Specification
    Number of Input Channels 2 channel
    Gain x10, x100 selectable
    Input Stage Differential Amplifier
    Common-Mode Rejection Ratio (CMMR) > 63 dB (DC - 1 kHz)
    Max Common-Mode Input Voltage ± 3 V
    Input Impedance ca. 1 MΩ II ca. 25 pF
    Input Impedance, BNC Shield to GND ca. 10 kΩ II 10 nF
    Input Bias Current < ± 0.1 uA
    Offset Drift (related to input) < ± 5 uV/°C
    Input Noise 4.5 nV / (Hz)½
    < 20 uVrms (20 MHz), < 4.5 uVrms (1 MHz)
    Output Impedance 50 Ω ± 0.5%
    Max. Output Voltage Swing ± 2.5 V (no Load)
    ± 1.25 V (Load = 50 Ω)
    Bandwidth (Output Swing <= 1 V) 20 MHz (G=10), 15 MHz (G=100)
    DC-Gain Error typ. ± 0.1%, max. ± 0.2%
    Connector Input Isolated BNC
    Connector Output Non isolated BNC
    Max. Input Voltage (Protected Input Range) max. ± 25 V
    Power Supply 9 – 18 VDC, max 2.5 W
    For Model: EL-LNA2-B:Main Adapter included
    Case Box Version 108 x 45 x 170 mm
