單相交流電流源

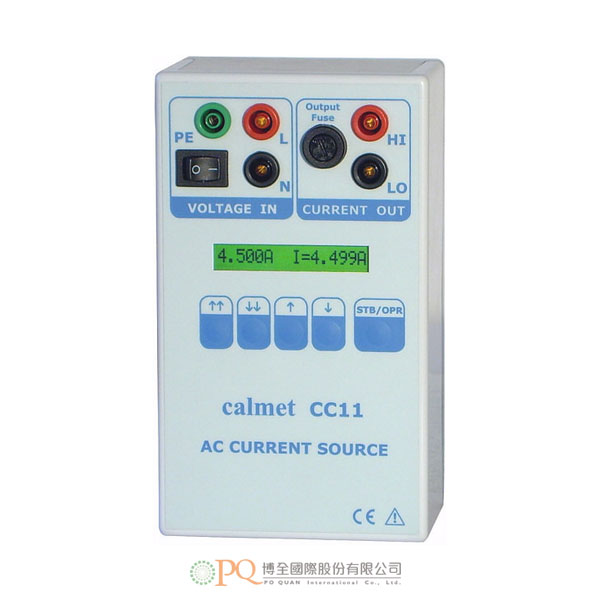

Single phase AC current source 型號:EL10
The CC11 is single phase AC current source class 0.2 with signal frequency equal to 50/60Hz and with phase shift 0° or 180° relative to the supply voltage. The CC11 enables to generate current in range up to 5A at the supply voltage 85..264V
    • Loading of single and three phase electricity meters
    • Current setting range from 0.005 to 5.000A
    • Digital measurement of output current
    • Silent operation and no heating
    • No need to disconnect meter and end user from circuit during electricity meter testing on site
    • Powering directly from measurement circuit
    • Galvanically isolated output
    • Accuracy class 0.2 for testing of AC current devices
  • Parameter

    Value 1)

    Current setting range

    0.005…5A

    Resolution of current setting

    0.001A

    Current setting error and current measurement error

    ±0.2% @ 0.5...5A   and   ±0.2%* @ 0.005 0.5A

    Maximum load

    1.5V @ 5A

    Phase angle of the output current relative to the supply voltage

    0° ±2° @ 230V

    Frequency

    50/60Hz according to the supply voltage

    THD of current

    according to the supply voltage

    Supply voltage

    85...264VAC / 45...65Hz / 25VA

    Ambient temperature

    -10...+60°C operating,
    -20...+60°C transportation

    Dimensions (width/height/depth) and weight

    110 / 190 / 80mm and 1.2kg

    Measurement Category

    300V CAT III acc. to EN 61010-1

    Degree of protection

    IP40 acc. to EN 60529

    1) % - related to the measuring value, %* - related to the measuring final value
