AstroNova Visual Display Software 型號：Everest® VDiS

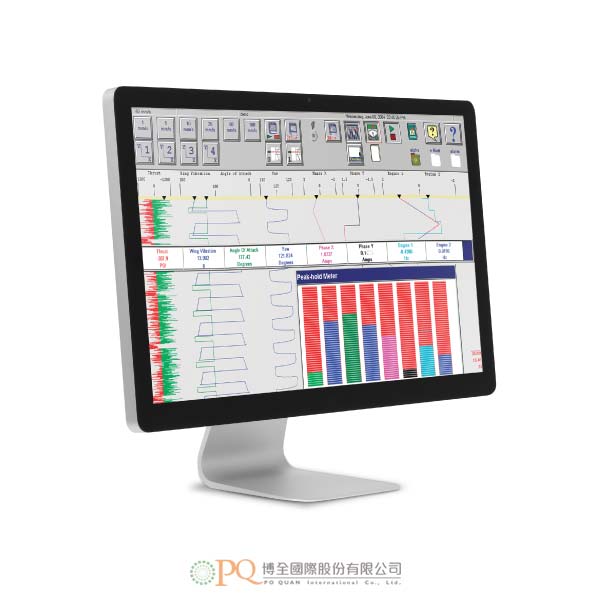

◎Everest VDiS是一款功能強大的工具，可將個人電腦轉換為虛擬條形圖表記錄器。
◎可透過乙太網路接受專用格式的數位信號。
◎提供許多即時顯示的功能（最多32個通道），包括條形圖、數字顯示及x-y繪圖形式。

加入洽詢

產品特點產品規格 Features Specifications

- 強大的回顧功能。
- 即時顯示最多32個通道。
- 不連續、重疊或自定的格子形式。
- 數字記錄器及X-Y繪圖顯示器。
- 可搭配第三方的遙測系統使用。
- 可自定操作介面。
- 系統介紹：
  - Everest VDiS是AstroNova推出的電腦條形圖表顯示分析套裝軟體，專為遙測設備及其它需要即時資料檢視的應用而開發，它是一款功能強大的工具，可將個人電腦轉換為虛擬的條形圖表記錄器。
    - 極適於遙測及其它需要檢視即時資料的應用。
    - 可在個人電腦上以許多不同的形式顯示資料。
    - 可自訂合乎應用需求的操作介面。
    - 可選購回顧功能，以便同時檢視即時資料及查看先前已檢視過的資料。
  - 適於遙測及其它需要檢視即時資料的應用：
    - Everest VDiS軟體開放的通訊協定，使它實際上能接受來自任何遙測系統的數位資料。
    - 主機通訊協定可讓遙測系統控制許多Everest VDiS軟體的功能，包括顯示形式配置、捲動速度、警報位準等。
  - 資料以許多不同形式顯示：
    - 以AstroNova Everest遙測記錄器工作站旗艦軟體為基礎，Everest VDiS軟體包含許多有用的即時顯示功能：

      資料可即時監看及同時以條形圖、數值資料記錄及x-y繪圖形式顯示。

      由信號資料驅動的“移動筆尖”，可在即時的資料點上標記。

      警報限值可設定為當超過預設限值時，容許波形改變顏色。

      顯示IRIG時間碼，而格子可與時間同步，以便以24小時制解讀資料。
    - 每個通道可以單獨顯示，或同時在多通道上顯示，以便比較。
    - 可以在螢幕上顯示點陣圖版型，以便使用者快速識別任一通道的參數。
    - 資料可以傳統的條圖形式，以最高200 mm/sec的速度捲動。
  - 自訂合乎應用需求的操作介面：
    - 可儲存不限數目的設定到記憶體，以便在系統設定中，節省時間及資源。
    - Everest VDiS軟體的設計，適用於運行Windows 98、Windows XP、Windows 2000、Windows 7及Windows 8的電腦。
  - 回顧功能，可讓您同時檢視即時資料及先前已看過的資料：
    - VDiS軟體的回顧功能“LookBack”，容許您在繼續捲動即時資料的同時，查看先前已檢視過的資料。
    - 多重檢視視窗，可供您同時檢視您想查看的所有資料。
- 提供單一使用者及站點授權形式：無論您需要在您的設施場所安裝一套或幾套，都適用單一使用者及站點授權方式。
- 詳細規格、配件、軟體及選購，歡迎洽詢。
- The Visual Display Software (VDiS) is a powerful tool that transforms the PC into a virtual strip chart recorder.
- It accepts digital signals in a proprietary format via Ethernet.
- VDiS has a number of real-time display capabilities, including strip chart, numeric display and x-y plot formats. The advanced look-back capability lets you capture data to your hard drive for later review.
- Features:
  - Powerful Look Back Feature…
  - Real-time Display of Up to 32 Channels
  - Discrete, Overlap or Custom Grid Formats
  - Numeric Datalogger and X-Y Plot Displays
  - Compatible with Third-Party Telemetry Systems
  - Customizable User Interface
- System Overview:
  - AstroNova announces a PC-based strip chart display and analysis software package. Developed for telemetry facilities and other applications requiring real-time data viewing, the Everest VDiS (Visual Display Software) is a powerful tool that transforms the PC into a virtual strip chart recorder.
    - Ideal for Telemetry and other real-time applications:
    - Display data in many different formats on your PC
    - Customize the interface for your application
    - Optional Look-back allows you to review previously viewed data simultaneously with real-time data
  - Ideal for Telemetry and other real-time applications:
    - The open protocol of the Everest VDiS software allows it to accept digital data from virtually any telemetry system.
    - The host control protocol allows telemetry systems to control many Everest VDiS functions, including display configurations, scroll speeds, alarm levels, etc.
  - Display data in many different formats:
    - Based on the software from AstroNova’s flagship Everest Telemetry Recorder-Workstation, the Everest VDiS software features a number of useful real-time display capabilities.

      Data can be monitored in real-time and simultaneously displayed in strip chart, numeric data logging and x-y plot formats.

      “Moving pen tips” driven by the signal data mark the real-time data points.

      Alarm limits can be set to allow waveforms to change color when predefined limits are exceeded.

      IRIG time code is displayed and grids can be synchronized with time, allowing data to be interpreted in military time.
    - Each channel can be displayed separately or simultaneously on multiple channels for easy comparison.
    - Bitmap templates can be displayed on the screen to allow a user to quickly identify any channel’s parameters. Data can be scrolled in traditional strip chart format at speeds up to 200 mm/sec.
  - Customize the Interface for your application:
    - An unlimited number of setups can be saved to memory, saving time and resources during system setup.
    - Everest VDiS Software is designed to operate on computers running Windows 98, Windows XP and Windows 2000, Windows 7 and Windows 8.
  - Look-back allows you to view real-time and previously viewed data at the same time:
    - The Look-back feature of the VDiS software allows you to review previously viewed data while continuing to display real-time data.
    - Multiple review windows let you see all the data that you want at the same time.
- Single user and site licenses: Whether you need one copy or several copies installed at your facility, single user and site licenses are available.
- Please feel free to contact for detailed specifications.
