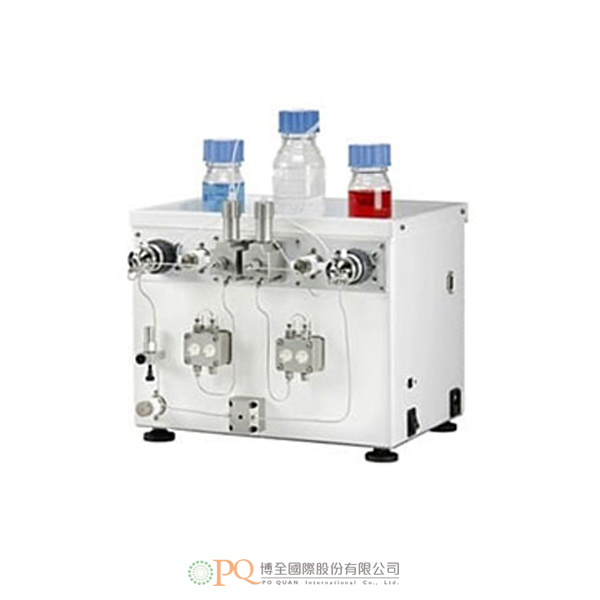

FlowSyn Binary Pump Module

BPM 可以與任何 FlowSyn 系統結合使用並由其控制。對於擁有自己的反應器系統的客戶，內置混合器、入口/出口選擇閥和整合背壓調節器確保 BPM 也可以作為獨立的試劑/溶劑輸送系統。為了安全和安心，三個壓力感測器不斷監測壓力和系統性能。
作為一個獨立系統，BPM 使用專用的電腦控制軟體進行控制。可以使用 BPM 的內置 coms 端口連接外圍設備。
BPM 可在高達 100 bar (1400 psi) 的壓力下運行，並可配備標準 0.005 至 10 ml/min 壓頭 (UQ1022) 或 0.05 至 50 ml/min 壓頭 (UQ1023)。

• 添加兩個額外的試劑通道並通過 FlowSyn 界面控制它們
• 針對需要4個獨立輸入的反應
• 可選擇不銹鋼、PTFE 或哈氏和金流路以實現最佳化學兼容性
• 用於在獨立模式下控制 BPM 的專用電腦軟體
• 可用作間歇式反應器的雙劑量模塊

The BPM can be used in combination with and controlled by any FlowSyn system. For customers who have their own reactor system, the built-in mixer, inlet/outlet selector valves and integral back pressure regulator ensure that the BPM can also function as a stand-alone reagent/solvent delivery system. For safety and peace of mind, three pressure transducers constantly monitor pressure and system performance.

As a stand-alone system the BPM is controlled using dedicated PC control software. Peripherals can be attached using the BPM’s built-in coms ports.

The BPM operates at up to 100 bar (1400 psi) and can be supplied with standard 0.005 to 10 ml/min heads (UQ1022) or 0.05 to 50 ml/min heads (UQ1023).

• Add two extra reagent channels and control them via the FlowSyn interface
• For reactions requiring 4 independent inputs
• Choice of stainless steel, PTFE or Hastelloy flow paths for optimal chemical compatibility
• Dedicated PC software for control BPM in stand-alone mode
• May be used as a dual dosage module for batch reactors
