COMBINED

COMBINED 型號:COMBINED

Dedicated test benches to run standard tests on hoses, multilayer pipes, valves, fittings, etc...

Static press. operating range: 1-250 bar

  • Pulsing press. operating range: 10-100 bar
  • Test chamber temperature: 20-110° C...

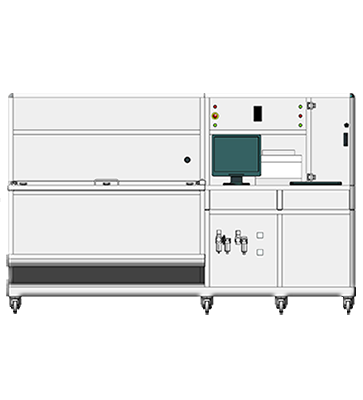

  • TEST BENCH FLEXIBLE HOSES
    Cod. BPF200-SIC-HT-HC

    Hydraulic bench specially designed for flexible hoses testing according to the main international Standards.

    Main features

    • Execution of static and burst tests
    • Execution of water hammer resistance tests
    • Execution of ageing tests

    BPF200-SIC-HT-HC is a complete test bench designed to perform all the hydraulic tests on flexible hoses required by main international Standards.
    It is possible to perform static and burst pressure tests up to 200 bar without water circulation; water hammer resistance tests, cycling pressure and ageing tests.
    The bench is provided with two internal tanks for hot and cold water supply and thermo-regulated test chamber to control the temperature also in case of tests without water circulation.

    It is possible to upgrade the bench with optional equipment on request to perform flow-rate tests and thermal cycle tests.

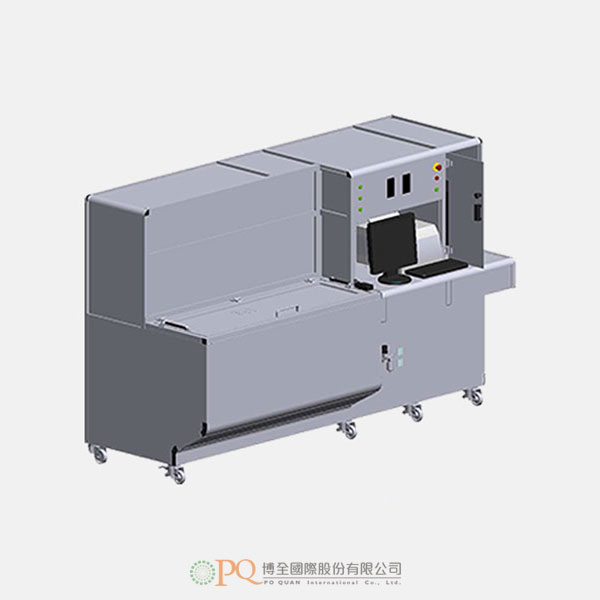

    TEST BENCH UNIVERSAL
    Cod. BPF-T3000-SWG

    Universal bench for hydraulic tests on multi-layer tubes, flexible hoses, connections and hydraulic devices.

    Main features

    • Static pressure tests
    • Pulsing pressure tests
    • Thermal cycles and ageing tests

    The BPF-T3000-SWG is a universal test bench suitable for perform several kind of test on flexible hoses, tubes and hydraulic devices.
    It is possible to perform static/burst pressure tests up to 200 bar and water hammer resistance tests.
    The bench permits to carry out thermal cycle tests on multi-layer tubes, flexible hoses and connections.
    Optional devices are available to execute flow-rate tests, Kv coefficient calculation and endurance tests on ball valves.





  • 詳細產品規格,請洽專業人員
