HOT AND COLD WATER GENERATORS

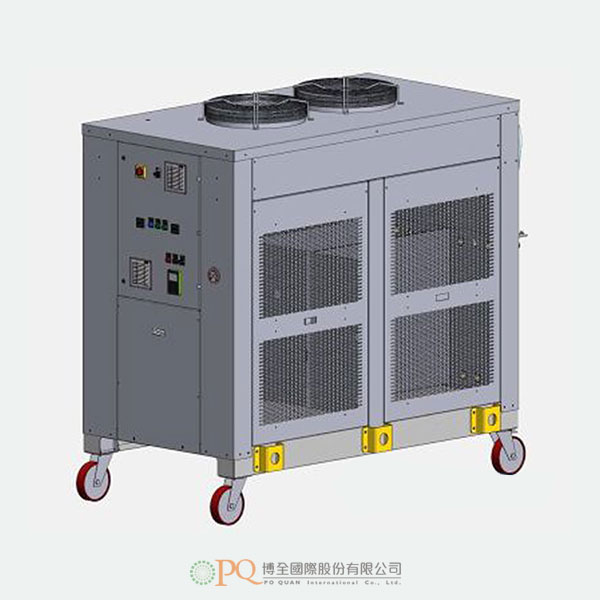

HOT AND COLD WATER GENERATORS 型號:TCW/CCW
The device allows to supply with hot and cold water the hydraulic test benches for laboratory, production and endurance applications.
  • The device allows to supply with hot and cold water the hydraulic test benches for laboratory, production and endurance applications.

    The TCW/CCW generators are made up of two independent plants used to produce and store hot and cold water and recovery the return mixed water. The refrigeration circuit uses a silenced airtight SCROLL type compressor that allows a high power efficiency, lower electric consumption and lower noise. SCROOL compressor reduces the risk of valves failure, high frequency failure in other compressor type. The cooling plant consist in a forced air condenser with fans controlled by inverter, an external tank heat exchanger, an air-mixing pump and an expansion device with thermostatic valve with by-pass on hot gas. The heating plant consists of three heating elements and one water circulator. The TCW/CCW group works with closed circuit. The water used on the bench is recovered and sent again to the generator where it is heated/cooled again at the temperatures required for the test.

  •   TCW B2 (axial fans) CCW B2 (centrifugal fans)
    Cooling power 23 kW 23 kW
    Heating power 24 kW 24 kW
    Maximum operating range hot water 40 ÷ 90 °C
    cold water 5 ÷ 25 °C
    hot water 40 ÷ 90 °C
    cold water 5 ÷ 25 °C
    Recommended operating range hot water 40 ÷ 90 °C
    cold water 10 ÷ 25 °C
    hot water 40 ÷ 90 °C
    cold water 10 ÷ 25 °C
    Typical stability in dynamic condition at 50% of flow-rate ±0,5 °C ±0,5 °C
    Limit ambient temperature -10 ÷ 45 °C -10 ÷ 45 °C
    Internal tanks 300+300 L 300+300 L
    Continuous flow-rate with supply at 15 and
    65 °C and 40 °C mixed water temperature.
    12+12 L/min 12+12 L/min
    Noise level 75 dB 75 dB
    Fans flow-rate 10.000 m³/h 11.000 m³/h
    Size 2.300 x 1.200 x (h) 2.050 mm 2.300 x 1.200 x (h) 2.300 mm
    Weight 680 kg 720 kg
    Electric supply 400 V – 3 Ph – 50 Hz 400 V – 3 Ph – 50 Hz
    Internal secondary 24 V AC 24 V AC
    Total power 36,0 kW 37,6 kW
    Max absorbed current 58,2 A 61,0 A



      TCW E0 (axial fans) CCW E0 (centrifugal fans)
    Cooling power 46 kW 46 kW
    Heating power 48 kW 48 kW
    Maximum operating range hot water 40 ÷ 90 °C
    cold water 5 ÷ 25 °C
    hot water 40 ÷ 90 °C
    cold water 5 ÷ 25 °C
    Recommended operating range hot water 40 ÷ 90 °C
    cold water 10 ÷ 25 °C
    hot water 40 ÷ 90 °C
    cold water 10 ÷ 25 °C
    Typical stability in dynamic condition at 50% of flow-rate ±0,5 °C ±0,5 °C
    Limit ambient temperature -10 ÷ 45 °C -10 ÷ 45 °C
    Internal tanks 400+400+100 L 400+400+100 L
    Continuous flow-rate with supply at 15 and 65 °C and 40 °C mixed water temp. 24+24 L/min 24+24 L/min
    Noise level 75 dB 75 dB
    Fans flow-rate 15.000 m³/h 16.500 m³/h
    Size (with wheels) 2.700 x 1.600 x (h) 2.050 mm 2.700 x 1.600 x (h) 2.300 mm
    Weight 1.800 kg 1.900 kg
    Electric supply 400 V – 3 Ph – 50 Hz 400 V – 3 Ph – 50 Hz
    Internal secondary 24 V AC / 24 V DC 24 V AC / 24 V DC
    Total power 70,2 kW 73,0 kW
    Max absorbed current 120 A 130 A
