偶極電磁鐵

3472 Dipole, 100mm 型號:3472
  • 平行線圈的磁場
  • 根據磁場強度、操作空間有多種pole face可以選擇
  • 最大磁場:±3T (與gap有關)
  • 電源供應:±70A, ±50V
  • 系統包含:電源、水冷、溫度interlock、操作軟體
  • 可自由編輯供應磁場的大小、波型、時間
  • 更可以自行定義實驗集
  • 在大電流的供應中,定溫度Interlock確保實驗的安全
  • 可搭配傾斜旋轉載台
    • 平行線圈的磁場
    • 根據磁場強度、操作空間有多種pole face可以選擇
    • 最大磁場:±3T (與gap有關)
    • 電源供應:±70A, ±50V
    • 系統包含:電源、水冷、溫度interlock、操作軟體
    • 可自由編輯供應磁場的大小、波型、時間
    • 更可以自行定義實驗集
    • 在大電流的供應中,定溫度Interlock確保實驗的安全
    • 可搭配傾斜旋轉載台

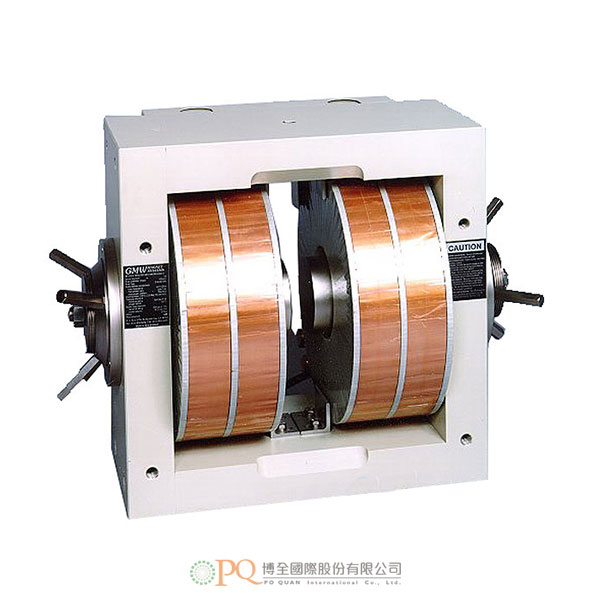

    • The 3472 Dipole Electromagnet accepts a range of pole caps with face diameters up to 100mm. The model 3472-50 is fitted with a 50Amp coil pair, and has a coil gap of 115mm. The model 3472-70 is fitted with a 70Amp coil pair with enhanced cooling, and has a coil gap of 82mm.  The 3472-70 is recommended when high fields are required at large pole gaps or to achieve maximum field stability for spectroscopic or similar applications.
    • Features:
      • Modest Size
      • 50 or 70 Amp Versions
      • Adjustable Pole Gap
      • Wide Variety of Pole Caps
      • Air or Water Cooled
      • Many Mounting Options
    • Applications:
      • Hall Effect Studies
      • Magneto-Optical Studies
      • Laboratory Experiments
      • Magnetic Separation experiments
      • Magnetic alignment of small components
      • Studying chemical reaction rate changes
